KZ1.2 Curved Rail Side Dumping Mine Car

KZ1.2 Curved Rail Side Dumping Mine Car

The curved rail side dump truck consists of a body, a base, a buffer, a wheel pair and a sensing mechanism. The side-discharging mine car is driven by the tractor and the winch, and can be combined wi

Introduction of

KZ1.2 Curved Rail Side Dumping Mine Car

The curved rail side dump truck consists of a body, a base, a buffer, a wheel pair and a sensing mechanism. The side-discharging mine car is driven by the tractor and the winch, and can be combined with the rock drilling drill, the vertical claw rock loader and the ore sliding gate discharge system. The ore block does not exceed 500 mm, according to the load of the mine car. The volume is charged to the special track unloading mechanism (loading speed not exceeding 1m/second) after the loading. When the rail-side dump truck is turned to a horizontal discharge angle, the door is also opened to a large extent. At this time, the unloading of the rail-side dump truck has been completed. Upon returning, the track-side dump truck automatically closes in place through the curved door.

Main Parameter of

KZ1.2 Curved Rail Side Dumping Mine Car

project

model

KZ1.2

KZ1.7

KZ2

KZ4

KZ6

KZ8

KZ10

KZ16

Volume(m3)

1.2

1.7

2

4

6

8

10

16

Load(t)

3

4.2

5

10

15

20

25

40

weight(t)

1.6

1.83

2.82

4.56

5.76

6.92

8.42

10.6

Tilt angle

42°

gauge(mm)

600/762

762/900

762/900

Track(mm)

1200

1200

1300

1500

2000

2600

3000

3500

Tractionspeed(km/h)

8

8

8

8

8

8

8

8

Turn radius(m)

13

13

13

15

15

18

25

30

Dimensions(mm)

long

2775

2875

3300

3850

4850

6350

7350

7500

width

1100

1230

1230

1500

1500

1500

1500

1900

high

1065

1200

1270

1451

1586

1634

1737

2060


Photos Of

KZ1.2 Curved Rail Side Dumping Mine Car

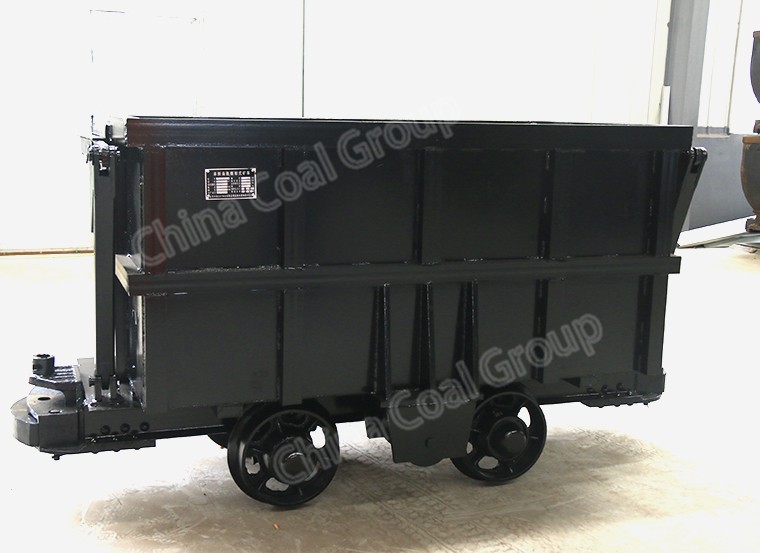

  • KZ1.2 Curved Rail Side Dumping Mine Car

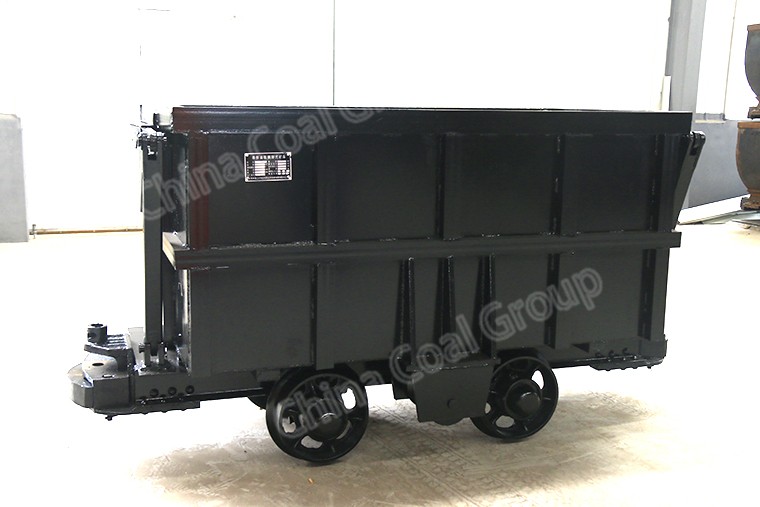

  • KZ1.2 Curved Rail Side Dumping Mine Car
