Underground Mining Inclined-shaft Man Car

Introduction of

Underground Mining Inclined-shaft Man Car

Inclined man mine cars are one of the safety equipments for transporting inclined shafts in various types of mines. The mining cart is suitable for inclined wells less than 30 degrees. Inclined-shaft man mine car is pulled by a mining winch, it can independently use first car. It can also be run together by the first car, trailers and tail trains. effectively and safely. The number of trailers on a train depends on the slope of the mine. In order to ensure the safety of the personnel, the coal mining car vehicle is provided with a braking device that reliably brakes when a wire rope is broken or there is an obstacle ahead.

According to the different types of brakes, it can be divided into two types: XRC and XRB.

MAIN PARAMETER OF

Underground Mining Inclined-shaft Man Car

specification			XRC10-6/6S	XRC10-6/6W	XRC15-6/6S	XRC15-6/6W
Max traction			60
Max speed			4
Roadway slope			10-30
Curve radius	horizontal direction		12
	Vertical direction		12
Rail gauge			600
Numbers of people			10	10	15	15
net weight		First car S	1520	-	1595	-
		Tail car W	-	1555	-	1630
Dimention		Width mm B	1050	1050	1226	1226
		Height mm H	1474	1474	1474	1474

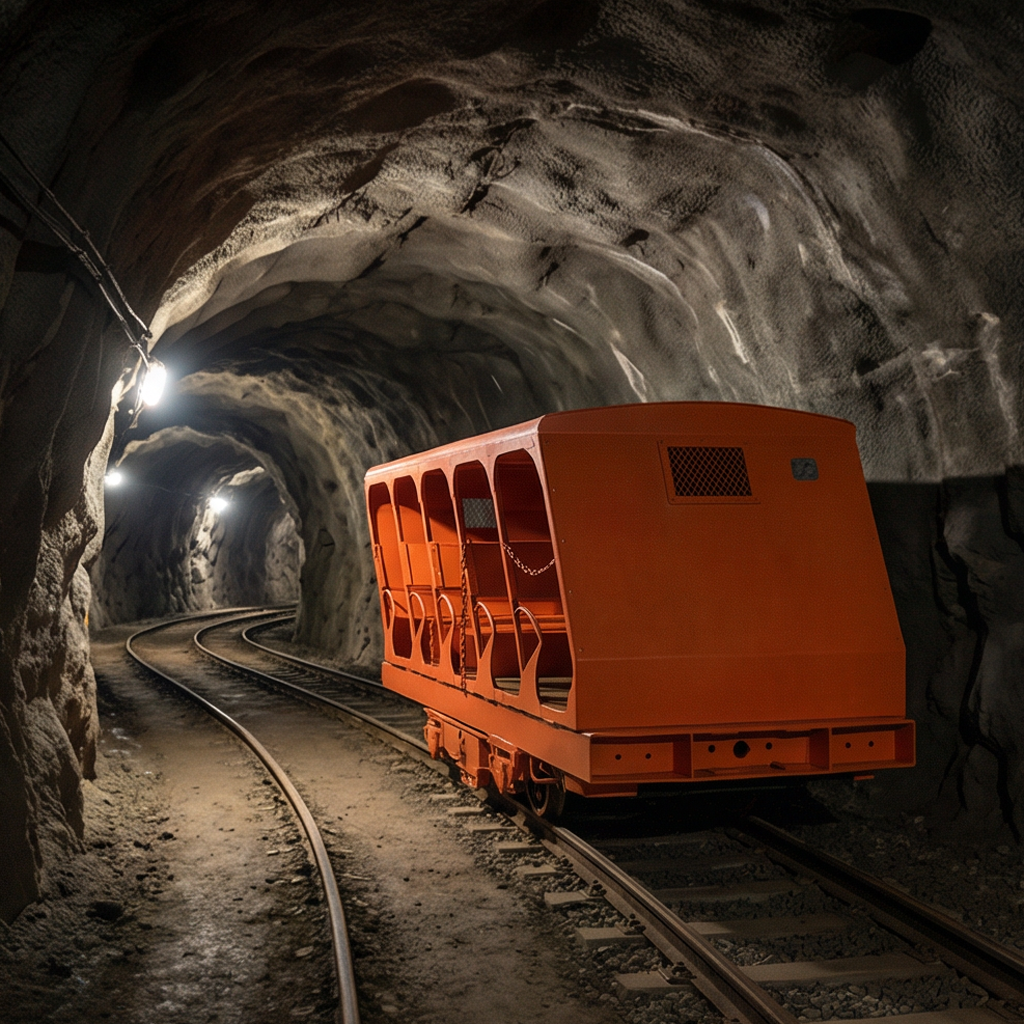

PHOTOS OF

Underground Mining Inclined-shaft Man Car

PHOTOS OF

Underground Mining Inclined-shaft Man Car

•

  XRC Type Inclined Shaft Vehicle/Inclined Shaft Man Car

•

  XRC10 Type Coal Mine Inclined Shaft Man Car

•

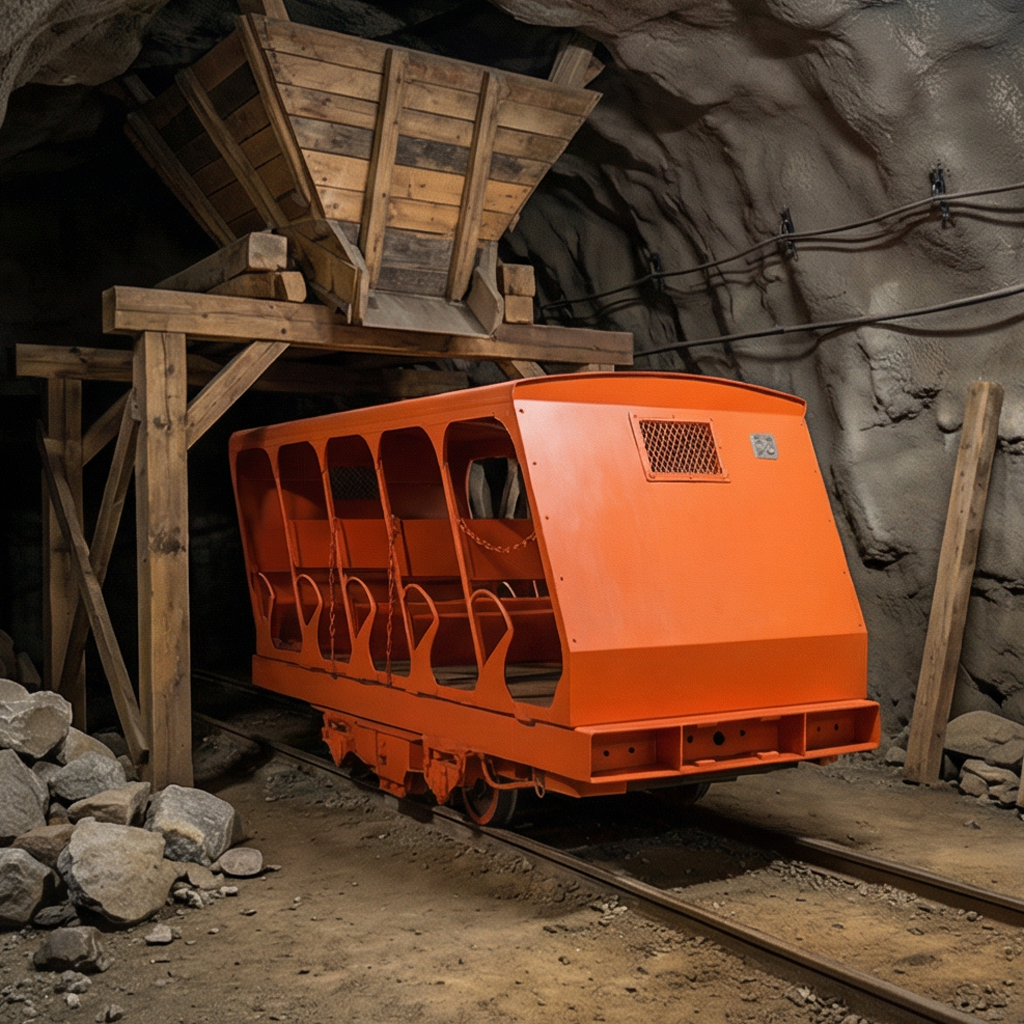

  XRC8 Underground Mining Insert-Rail Type Inclined Person Car
