Curved Rail Side Dumping Car is mainly used for metallurgy, mining, coal mines, railways, highway ramps, hydraulic culverts, underground mine flats, inclined wells and military culverts, such as engin
Contact Us Product Center
Curved Rail Side Dumping Car is mainly used for metallurgy, mining, coal mines, railways, highway ramps, hydraulic culverts, underground mine flats, inclined wells and military culverts, such as engineering excavation, construction, simple and high-efficiency slag transport equipment. Effectively improve the transportation volume and transportation speed and improve the level of mechanized operation line.
MAIN PARAMETER OFTraction walking by the track traction locomotive or hoist, can only be unloaded on the set rail side on the rail unloading platform made at the unloading point (the current unloading track has the full name of the mobile and movable unloading track) Called reciprocating track), you can unload the track without unloading, and unload it to the next unloading track. On one side of the compartment, the axle is connected to the frame by a lower shaft, and the other side of the compartment door is provided with an unloading roller. During unloading, when the roller moves up the uphill section of the unloading track along the curved track ramp, the car is tilted, and the movable side door is pulled around the pin to start unloading. When the roller runs down the slope of the inclined unloading track, the cabin is automatically lowered by the self-generated weight to close the side door. It should be noted that when the one-side curved rail unloading type mine car is lifted from the bottom of the well to the unloading platform by 15 meters, the lifting winch should slow down the upper slope unloading platform to make it smoothly unload.

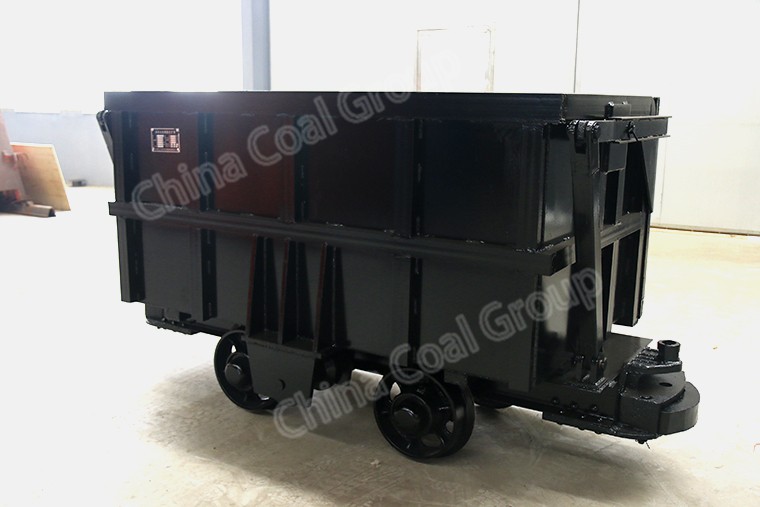

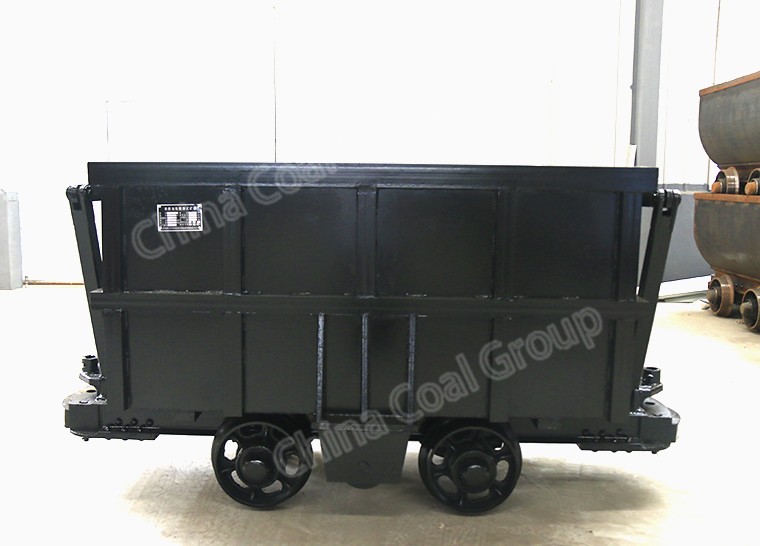

PHOTOS OF
