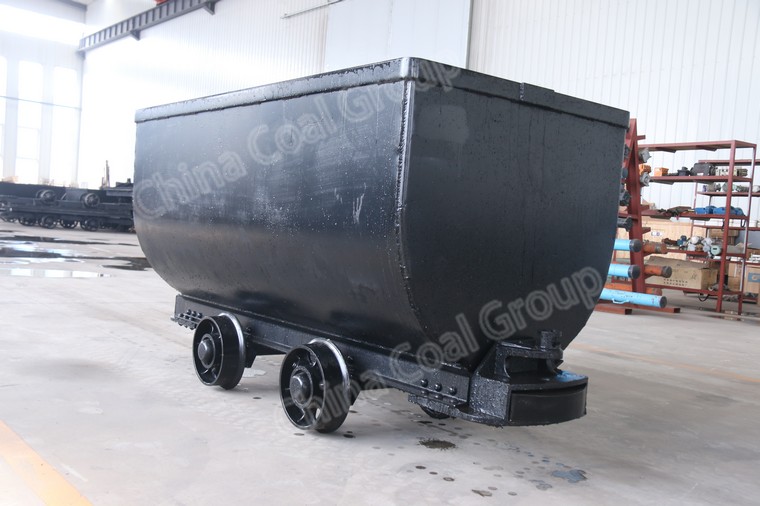

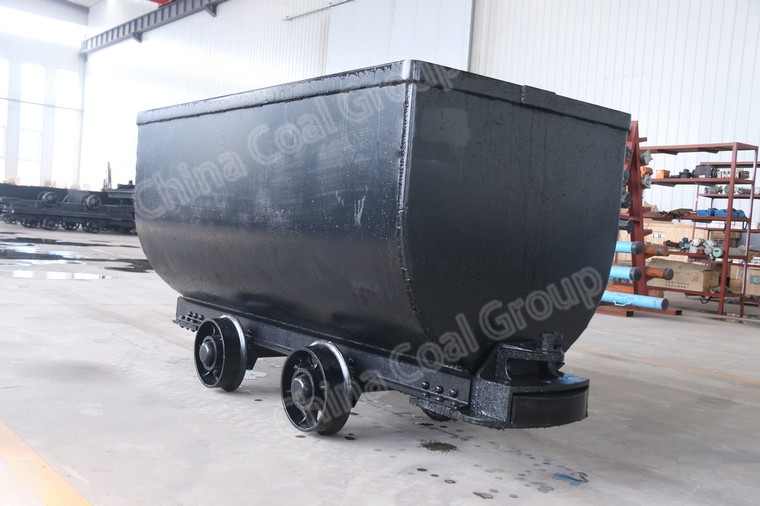

MGC1.7-6 fixed mine car are mainly used for the transportation of coal and vermiculite. Since the car's box is fixed to the frame, it must be unloaded by using a dumper or other special equipment when unloading. The mine car can meet the requirements of continuous picking and unloading. The mine car has a simple structure, is easy to manufacture, is durable, and is easy to maintain.
MGC1.7-6 fixed box mine car is mainly composed of main components such as car box, frame, axle, traction chain and pin-type anti-detachment pin.
MAIN PARAMETER OF|
Model |
MGC1.7-6 |
MGC1.7-9 |
MGC1.1-6 |
MGC3.3-9 |
|
|
Volume(m³) |
1.7 |
1.7 |
1.1 |
3.3 |
|
|
Theoretical |
Capacity(T) |
1.5 |
1.5 |
1 |
3 |
|
Max. Load(T) |
2.7 |
2.7 |
1.8 |
5.3 |
|
|
Gauge(mm) |
600 |
900 |
600 |
900 |
|
|
Wheel Base(mm) |
750 |
600 |
550 |
1100 |
|
|
Wheel Diameter (mm) |
300 |
350 |
300 |
350 |
|
|
Traction(KN) |
60 |
60 |
60 |
60 |
|
|
Traction Height(mm) |
320 |
320 |
320 |
320 |
|
|
Overall Size(L*W*H) |
2400x1050x1200 |
2100x1150x1300 |
2000x880x1150 |
3450x1320x1300 |
|
|
Weight(≤kg) |
720 |
970 |
610 |
1320 |
|
