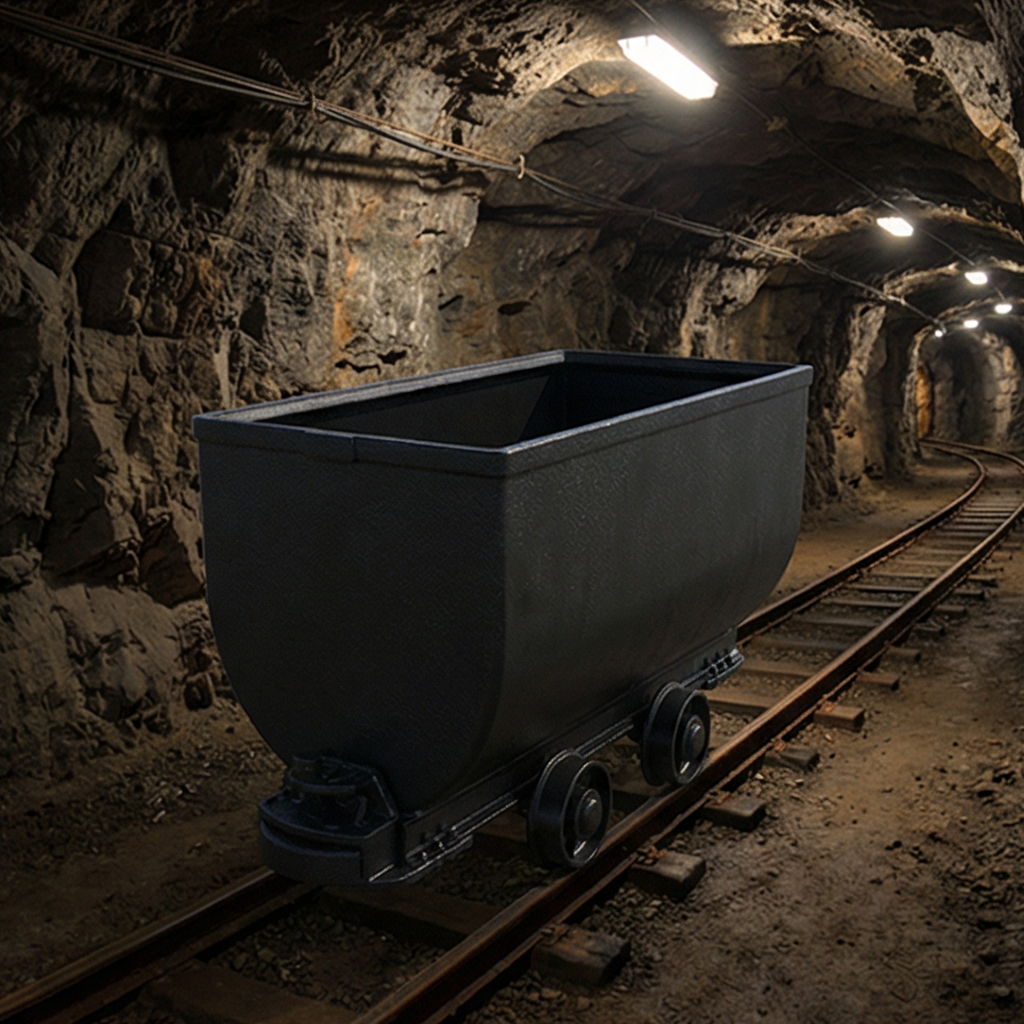

The fixed mine car trunk is fixedly connected with the frame, and the dump truck must be turned over and unloaded by the dumper. Its basic components are the car, the frame, the bumper, the coupling and the walking mechanism. The frame is a metal structure that can withstand traction, braking force, collision force between the mine car and rail impact buffers at both ends of the frame to mitigate the impact between the two cars. The coupling is a component that connects the locomotive and the mine car. Commonly used are the bolt chain and the swing chain. The large mine car uses an automatic coupler that has a buffer function. The running gear is a pair of wheels consisting of 4 wheels and 2 shafts. When the sum of mine cars and materials exceeds 20 tons, the number of wheel pairs should generally be increased.
MAIN PARAMETER OF|
Model |
MGC1.7-6 |
MGC1.7-9 |
MGC1.1-6 |

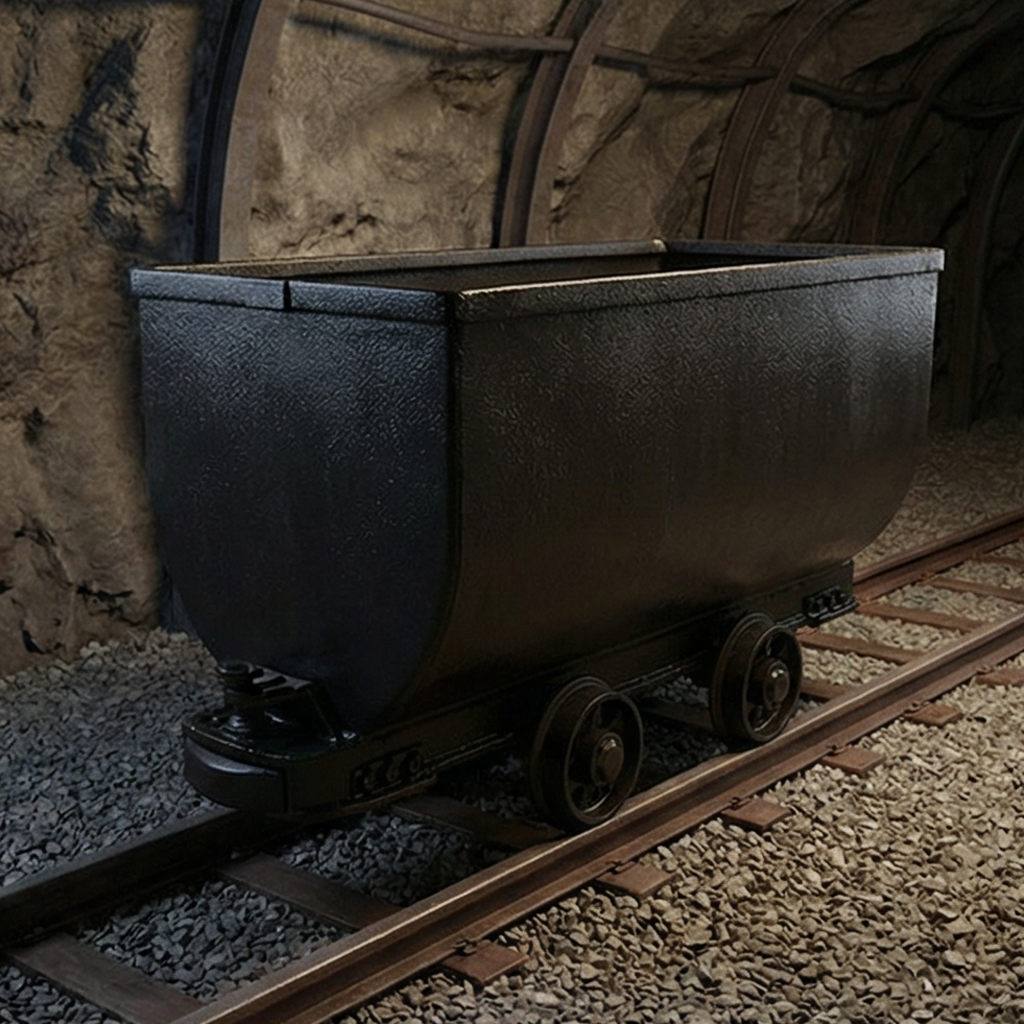

MGC3.3-9 |
|
|
Volume(m³) |
1.7 |
1.7 |
1.1 |
3.3 |
|
|
Theoretical |
Capacity(T) |
1.5 |
1.5 |
1 |
3 |
|
Max. Load(T) |
2.7 |
2.7 |
1.8 |
5.3 |
|
|
Gauge(mm) |
600 |
900 |
600 |
900 |
|
|
Wheel Base(mm) |
750 |
600 |
550 |
1100 |
|
|
Wheel Diameter (mm) |
300 |
350 |
300 |
350 |
|
|
Traction(KN) |
60 |
60 |
60 |
60 |
|
|
Traction Height(mm) |
320 |
320 |
320 |
320 |
|
|
Overall Size(L*W*H) |
2400x1050x1200 |
2100x1150x1300 |
2000x880x1150 |
3450x1320x1300 |
|
|
Weight(≤kg) |
720 |
970 |
610 |
1320 |
|
