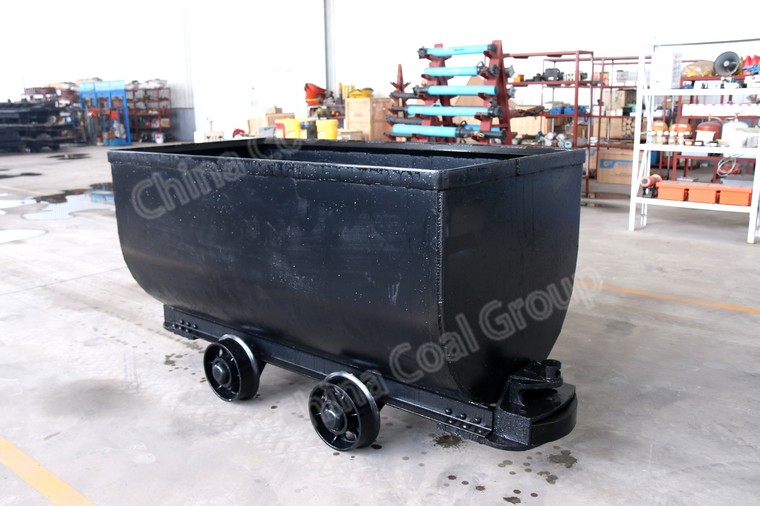

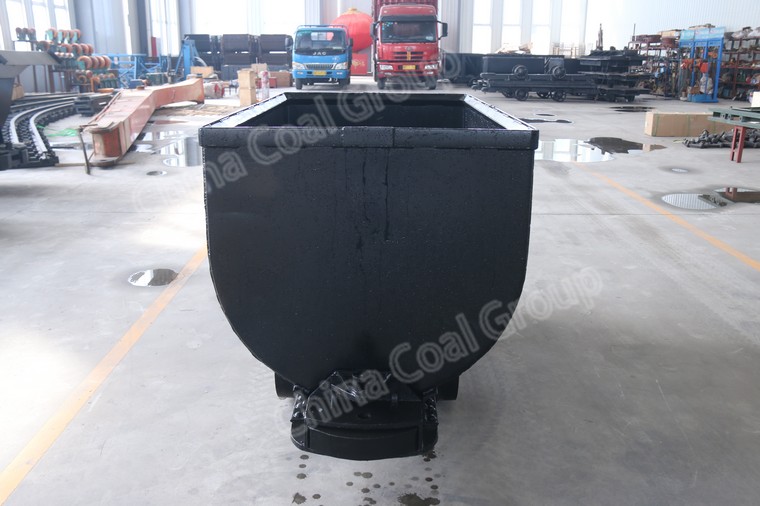

The MGC1.1-6 fixed box mining car is a major transportation device for transporting coal and vermiculite on coal mine ground and underground roadways. At the same time, it is also a short-distance transportation equipment for transporting sand, stone and other materials such as non-metallic ore, bridge, railway engineering, transmission and excavation and other construction and transportation projects.
MGC1.1-6 fixed box mine car has simple structure and is durable and durable. The mining car has small drag coefficient, large carrying capacity and convenient maintenance. It has many advantages. When the mine car is unloaded, the whole car body is turned over by using the dumper. come.
The fixed mine wagon is fixedly connected with the frame, and the dump truck must be turned over and unloaded by the dumper. Its basic components are the car, the frame, the bumper, the coupling and the walking mechanism. The frame is made of metal, capable of withstanding traction, braking force, collision force between the mine cars and rail impact buffers at both ends of the frame to mitigate the impact between the two cars. The coupling is a component that connects the locomotive and the mine car. Commonly used are the bolt chain and the swing chain. The large mine car uses an automatic coupler that has a buffer function. The running gear is a pair of wheels consisting of 4 wheels and 2 shafts. When the sum of mine cars and materials exceeds 20 tons, the number of wheel pairs should generally be increased. For a mine car with more than two wheel sets, in order to facilitate the formation of a car with a turntable by turning two wheel pairs through a curve, the car is called a bogie.
MAIN PARAMETER OF
Model |
MGC1.1-6 |
Volume |
1.10 cubic meters |
Nominal load |
1 ton |
Maximum load |
1.8 tons |
Rail Gauge |
600mm |
Dimensions |
2000*880*1150 |
Wheelbase |
550mm |
Wheel diameter |
300mm |
Traction height |
320mm |
Rated traction |
60KN |
