KFV1.1-6 Tipping Bucket Car Dumping Mine Car

KFV1.1-6 Tipping Bucket Car Dumping Mine Car

Date:2018-10-27     Label:

Mine Car

Bucket Tipping Mine Car

Dumping Mine Car

KFV1.1-6 tipping mine car is used in mines, mine roadway ground mines and construction sites to transport ore, coal, sand gravel and other materials, generally required to be pulled by locomotive or w

Contact Us Product Center
Introduction of

KFV1.1-6 Tipping Bucket Car Dumping Mine Car

KFV1.1-6 tipping mine car is used in mines, mine roadway ground mines and construction sites to transport ore, coal, sand gravel and other materials, generally required to be pulled by locomotive or winch. V-type mining vehicles are generally mainly used for transporting loose density below 1800kg/m3, and are mostly used for surface operations. The basic components are the car, the frame, the connector and the walking mechanism. The frame is a metal structure that can withstand traction and braking force. The connector is a component that connects the locomotive to the mine car. It consists of a bolt-connected loop-turn chain. The running mechanism consists of two wheels with four wheels and two axles.

MAIN PARAMETER OF

KFV1.1-6 Tipping Bucket Car Dumping Mine Car

Volume

1.1m3

Loading capacity

1.1T

Maximum load

1.1T

Gauge

600mm

Wheelbase

550mm

Wheel diameter

300mm

Bearing type

6310 deep groove ball bearing

Dimensions (mm)

2140mm long, 1100mm wide, 1200mm high

Traction height (h)

320mm

Rated traction

60KN

Minimum horizontal radius of curvature

8m

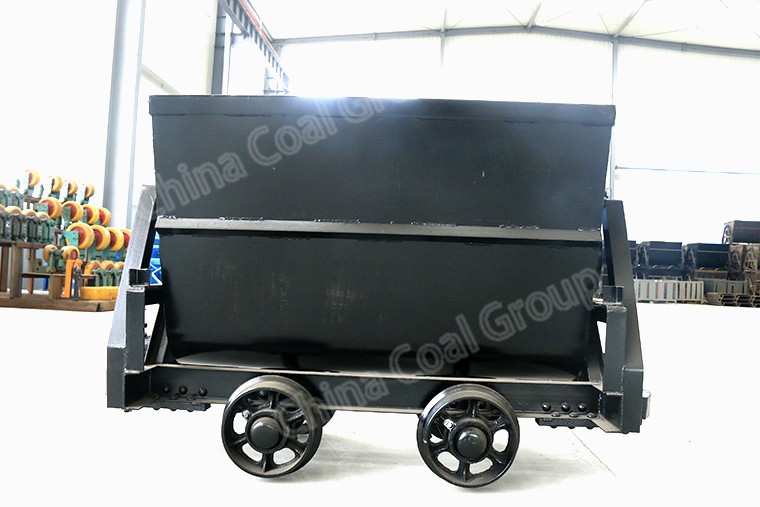

PHOTOS OF

KFV1.1-6 Tipping Bucket Car Dumping Mine Car

KFV1.1-6 Tipping Bucket Car Dumping Mine Car
KFV1.1-6 Tipping Bucket Car Dumping Mine Car
PHOTOS OF

KFV1.1-6 Tipping Bucket Car Dumping Mine Car
