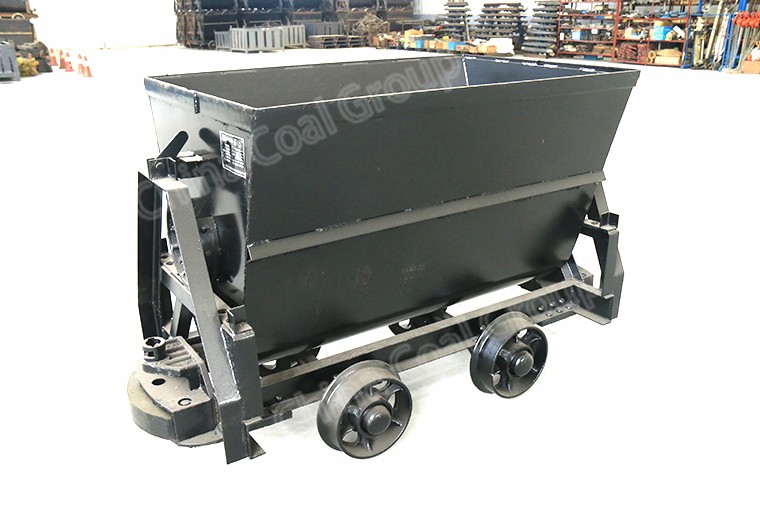

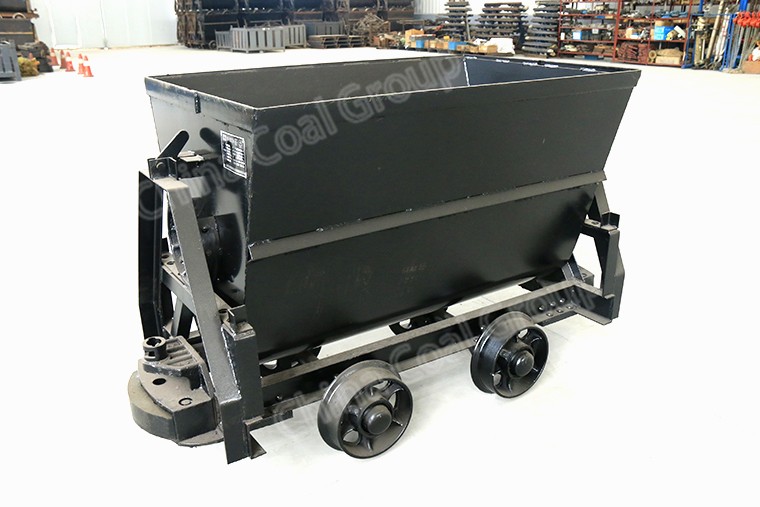

Bucket-Tipping Mine Car
Contact Us Product Center

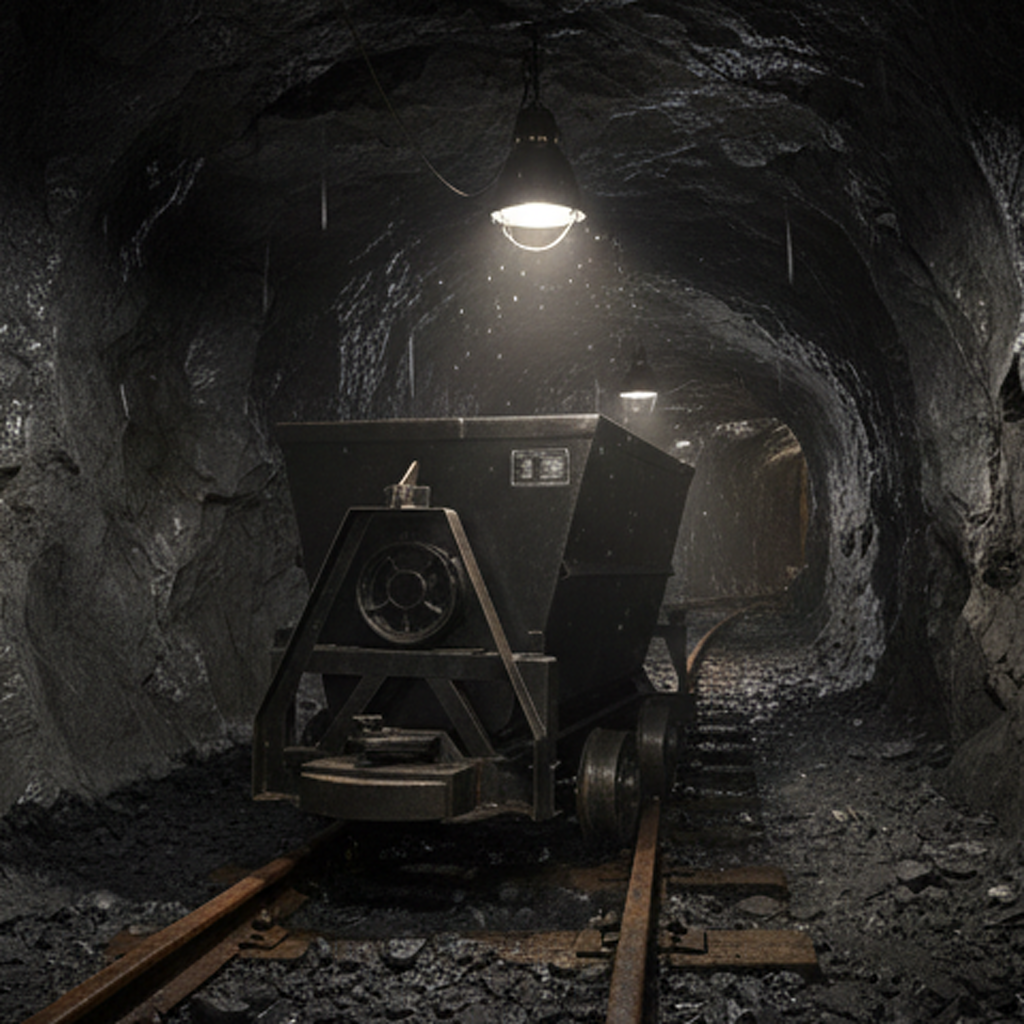

Bucket-tipping mine car is a narrow-gauge railway handling equipment that transports bulk materials such as coal and ore in mines. It is towed by locomotives or winches, and walks on the coal mine floor and the narrow-track railway of the underground roadway to realize the transportation of materials.
1. K: Indicates a coal mine vehicle.
2. F: Indicates a bucket tipping mine car.
3. U: Indicates the shape of the car box.
4. 0.55: Indicates that the volume of the car is 0.55m3.
5. 6: Indicates that the gauge used by the car is 600mm.
MAIN PARAMETER OF|
Model |
Volume (m³） |
Load (T) |
Gauge (mm) |
Wheel Base (mm) |
Wheel Diameter (mm) |
Traction (KN) |
Traction Height (mm) |
Overall Size (LxWxH) |
|
KFU0.55-6 |
0.55 |
1.3 |
600 |
500 |
300 |
60 |
320 |
1552*850*1150 |
|
KFU0.75-6 |
0.75 |
1.88 |
600 |
600 |
300 |
60 |
320 |
1700*980*1250 |
|

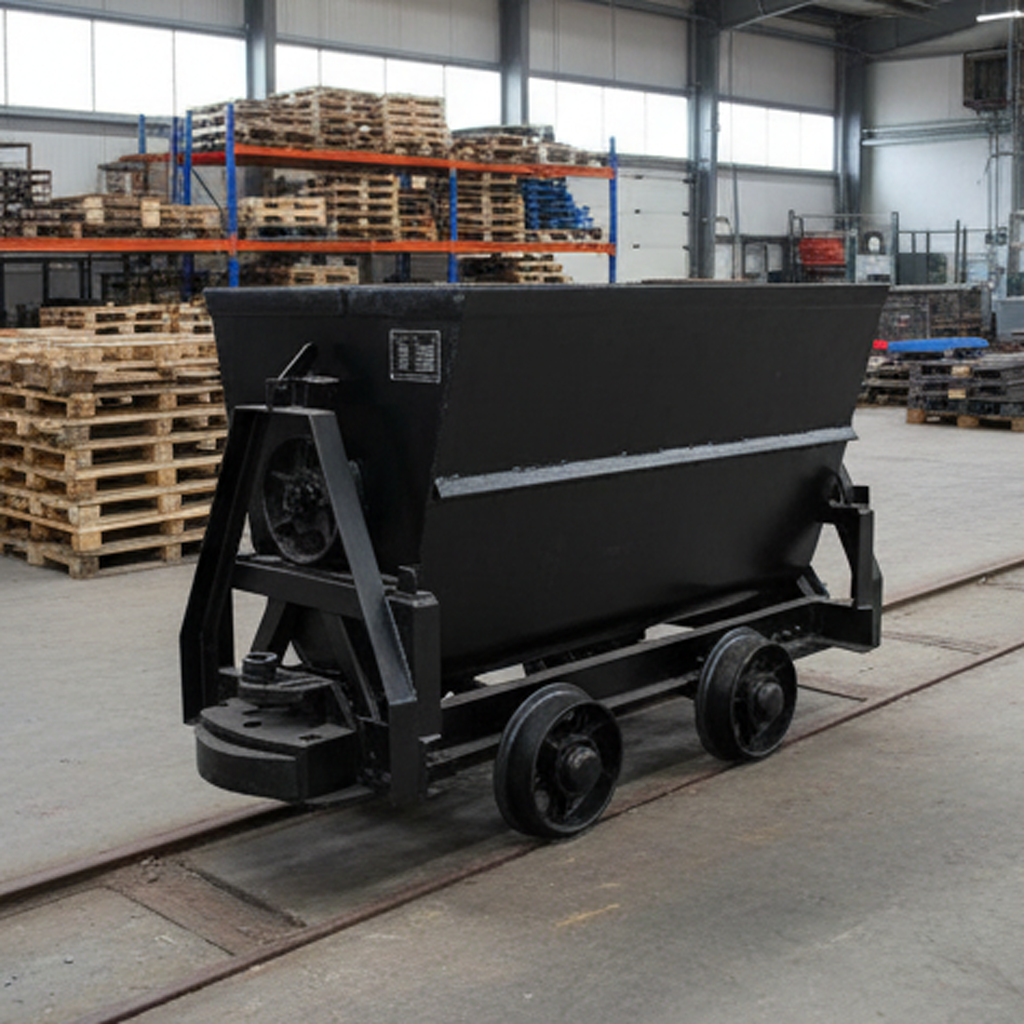

KFU1.0-6 |
1.0 |
2 |
600 |
600 |
300 |
60 |
320 |
1910*1070*130 |
|
KFU1.2-6 |
1.2 |
3 |
600 |
700 |
300 |
60 |
320 |
2228*1070*1320 |
