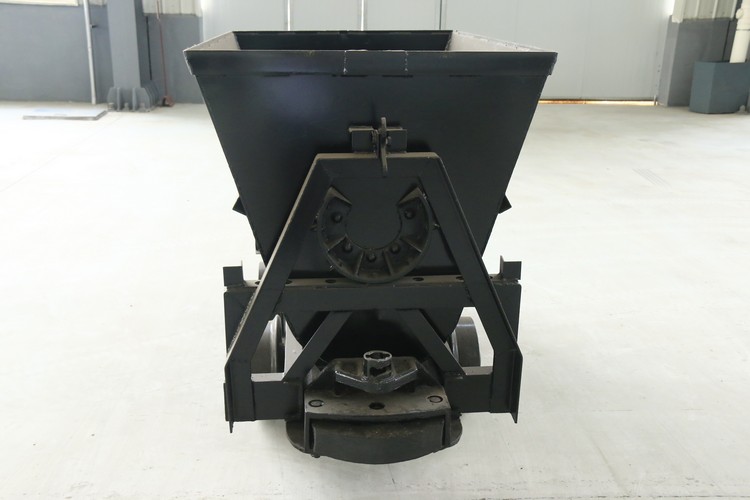

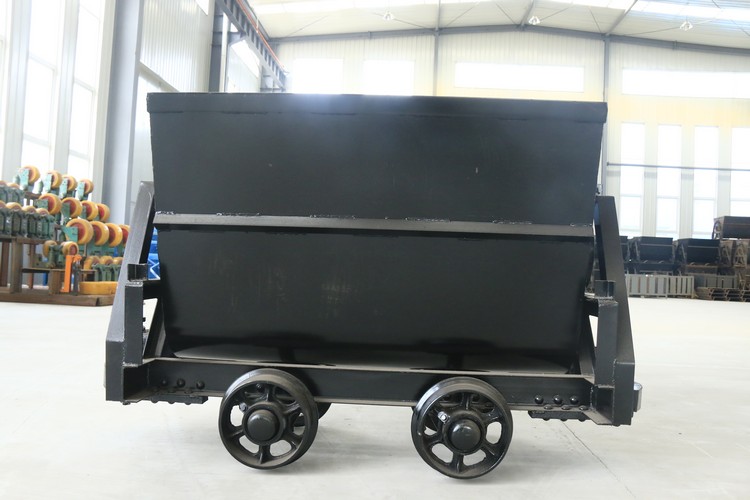

The bucket-tipping mine car is composed of a car box, a frame, a flip frame, wheel set etc.
The bucket-tipping mine car is composed of a car box, a frame, a flip frame, wheel set etc.
1.Car box: It consists of box plate, end cover, angle steel, strip steel and so on. The technical conditions are in compliance with relevant regulations. The flatness of the rear surface of the car support shall not exceed 3‰, and the difference between the two diagonals of the car's mouth shall not exceed 6mm.
2.Frame: It consists of channel steel, bumper seat, shaft card, etc. frame is made of metal and can withstand traction, collision between mine cars and rail impact.
3. Wheel Set: It consists of wheels, shafts, bearings, etc. Before the wheelset is assembled, the iron shoes and blockages should be cleaned and the parts cleaned.
Main Parameter of|
Model |
Volume (m³） |
Load (T) |
Gauge (mm) |
Wheel Base (mm) |
Wheel Diameter (mm) |
Traction (KN) |
Traction Height (mm) |
Overall Size (LxWxH) |
|
KFU0.55-6 |
0.55 |
1.3 |
600 |
500 |
300 |
60 |
320 |
1552*850*1150 |
|
KFU0.75-6 |
0.75 |
1.88 |
600 |
600 |
300 |
60 |
320 |
1700*980*1250 |
|
KFU1.0-6 |
1.0 |
2 |
600 |
600 |
300 |
60 |
320 |
1910*1070*130 |
|
KFU1.2-6 |
1.2 |
3 |
600 |
700 |
300 |
60 |
320 |
2228*1070*1320 |
