The Side Dumping Mine Car is a short-distance transportation equipment. The side-dumping mine car has a simple structure and is strong and durable. It has a small resistance coefficient, a large carrying capacity and is easy to maintain.
Working principle of Side Dumping Mine Car
The Side Dumping Mine Car is driven by a tractor and a drawworks, and can be combined with a rock drill, a slag raking machine and an ore slip gate discharge system. The ore size does not exceed 500 mm. According to the load volume of the mining vehicle, After loading, the traction power leads to a special curved rail unloading mechanism (the operating speed does not exceed 1m/s). When the truck box is turned to the level to form a discharge angle, the truck door is also opened to the extent. At this time, the unloading of the mine truck has been completed. When returning, the minecart passes through the curved track door and automatically closes in place. The side-dumping type mine car is suitable for tunnel, indoor and open-air track transportation in mines, tunnels, engineering construction and other departments. The gauge is 600mm, 762mm, and 900mm for users to choose. The truck is suitable for loading ore rock and sand with a lumpiness above 500mm. When loading lump materials, the free fall height should be less than 1m.

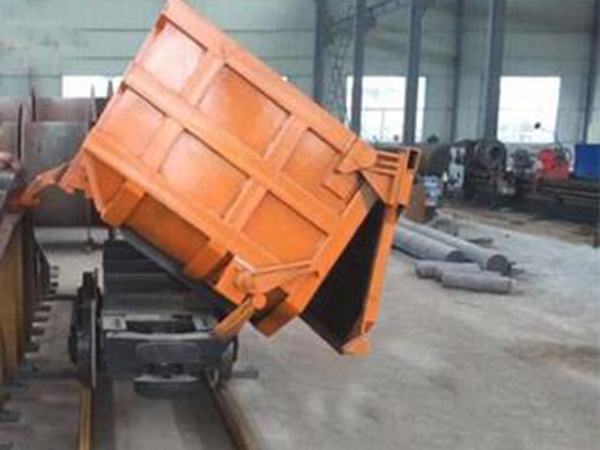

The locomotive or hoist is driven by the Side Dumping Mine Car and can only be unloaded to the set side on the curved track unloading platform prepared at the unloading place. One side of the carriage is connected with the hundred carriage frame by a shaft, and the unloading roller is installed on the other side of the box door. When unloading, when the degree roller is along the curved track slope transition device on the uphill section of the unloading curved track, causing the carriage to tilt, the movable side door rotates around the pin shaft and is pulled open to start unloading. When the rollers run downhill along the inclined unloading curved track, the carriage automatically descends and resets to close the side door by its own weight. It should be noted that when the side-curved-rail side-unloading mine car is lifted from the bottom of the shaft to the unloading platform, the hoisting machine should slow down and go up the slope unloading platform to make it unload smoothly. The advantages of the produced single-sided curved rail side unloading mine car are that it has a larger volume than the tipping bucket mine car and the fixed mine car, and it is automatically and smoothly unloaded. Due to the special characteristics of this unloading method, the unloading space of the curved rail is small. It is 5.2 meters long, and the unloading inclination can still reach 55 degrees, which effectively saves the development space of the shaft and reduces the size of the chamber. The unloading distance is short, and the excavation volume of the coal bunker and the yard is only one-third of that of other mining vehicles; because the unloading curved track is symmetrical, the side-dumping mining vehicle can be unloaded in both directions.
