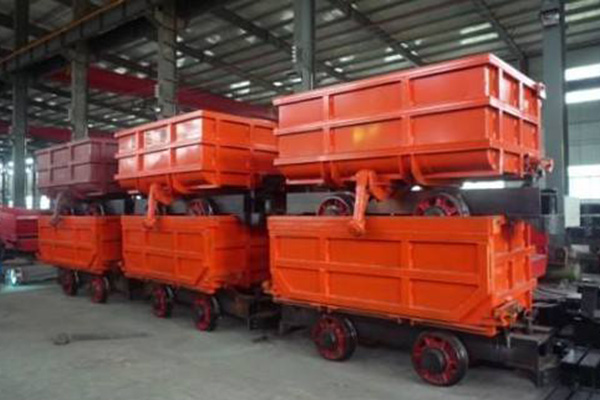

The mine car has a simple structure, many types, and complete models. The operating equipment used in the excavation of coal mines is indispensable to the single-sided curved rail Side Dumping Mine Car. Transportation equipment for mine tunnel, military culvert and other engineering excavation, construction, simple matching, high slag discharge efficiency.
Working principle of single-side curved rail Side Dumping Mine Car
It can only be unloaded on the unloading platform of the curved track unloading platform by the track traction locomotive or hoist. One side of the carriage is connected with the frame by a shaft, and the other side of the door is equipped with unloading rollers. During unloading, when the roller wheel moves up the slope of the unloading curved track along the curved track slope transition device, the car is tilted, and the movable side door rotates around the pin shaft and is opened to start unloading. When the rollers run downhill along the inclined unloading curved track, the carriage automatically descends and resets to close the side door by its own weight. It should be noted that when the side curved rail Side Dumping Mine Car is lifted from the bottom of the well to the unloading platform, the lifting hoist should slow down the speed to unload the platform to make it unload smoothly.
Product advantages of single side curved rail Side Dumping Mine Car
The advantage of the single-sided curved track Side Dumping Mine Car is that it has a larger volume than the dumping mine car and fixed mine car, and it automatically and smoothly unloads. Due to its own characteristics, the unloading space of the curved track is small, generally only 5.2 meters long The unloading inclination angle can still reach 55 degrees, which effectively saves the development space of the tunnel and reduces the size of the chamber. The unloading distance is short, and the digging volume of coal bunkers and depots is only one-third of that of other mine cars. Since the unloading curve is symmetrical, the two-way unloading of Side Dumping Mine Car can be realized. Single side curved rail Side Dumping Mine Car is composed of wheel set, frame, pin shaft, carriage, unloading curved rail, tipping wheel, pin shaft, door hook, car door, supporting iron tie rod and other components.
