The Side Dumping Mine Car has large transportation volume, stable operation and no off-track, stable unloading, no need to weld and fix the pressure wheel beam on the curved track, and there will be no rollover phenomenon during unloading due to its own weight, and the damage to the curved track is small and extended The track life.
Side Dumping Mine Car is a highly efficient and self-unloading operation equipment, which is incapable of itself and needs to be used in conjunction with traction locomotives. One or both sides of the car box can be opened, and the mine car is tilted by the mine unloading curved track installed on the mine unloading point, and the side door is opened by the pull rod to unload the mine. Working principle of side dumping mine car The side of the side dump mine car is connected to the frame with a hinge shaft on one side, and the unloading roller is installed on the other side of the box door.

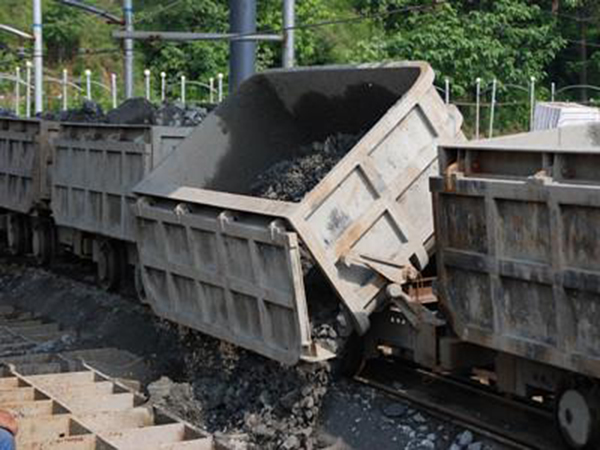

During unloading, when the roller wheel moves up the slope of the unloading curved track along the curved track slope transition device, the car is tilted, and the movable side door rotates around the pin shaft and is opened to start unloading. When the rollers run downhill along the inclined unloading curved track, the yimeijx03 car automatically descends and resets to close the side doors by its own weight. It should be noted that when the single-sided curved rail dump truck is lifted from the bottom of the well to the unloading platform, the 100m hoist coal should slow down the speed to the unloading platform of the slope to make it unload smoothly. Side Dumping Mine Car is a mine transportation tool that replaces the oldest dump bucket truck. It is simple and convenient, which increases the storage capacity, and is light and not bulky. Flexible transportation.
