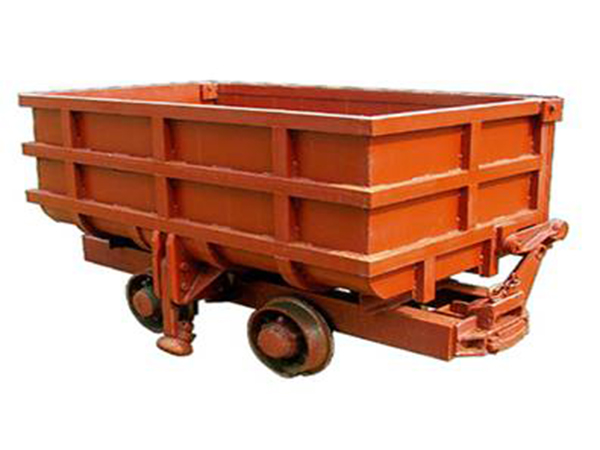

Side Dumping Mine Car is a mine transportation tool that replaces the ancient tipping bucket car. It combines its simplicity and convenience, increases its storage capacity, and is light and not bulky. It is flexible and can be self-unloaded.
The Side Dumping Mine Car is composed of the following components: 1. Car box, 2. Car underframe, 3. Wheel axle, 4. Unloading wheel, 5. Support spring 6. Buffer rubber spring and bumper. Among them, the connection between the car box and the car chassis adopts the form of a hinge, so that the mine car can open a certain angle when passing the unloading station so that the ore can be unloaded smoothly.
Side Dumping Mine Car are mainly suitable for tunneling, construction, simple supporting and high-efficiency slag transportation of tunnels and tunnels in metallurgy, mine tunnels, coal mines, railways, highway tunnels, underwater culverts, diversion tunnels, diversion tunnels and culverts. device. Side unloading mine car is driven by tractor and winch, and can be combined with rock drilling drill, vertical claw rock loader and ore sliding gate discharge system to load, ore block size does not exceed 600 mm, according to the load capacity of the mine car , After loading, it is led to the special curved track unloader by the traction power (running speed not exceeding 1m / sec). When the box is turned horizontally to a larger discharge angle, the door is also opened to a larger program. At this time, the unloading of the mine car is completed. When returning, the mine car automatically closes into place again through the curved door. The capacity of side dump mine car, curved track side dump mine car, and rollover mine car has a volume of 2 cubic meters, 3 cubic meters, 4 cubic meters, 6 cubic meters, and 8 cubic meters.
Side Dumping Mine Car is an efficient and self-unloading transportation equipment, which is incapable of itself and needs to be used in conjunction with a traction locomotive or hoist winch. It is suitable for mine, tunnel, engineering construction and other departments of tunnel, indoor and open-air rail transportation operations. The gauge is 600mm, 762mm, 900mm, for users to choose. The truck is suitable for loading mineral rock and sand with a block size of more than 500mm. When loading bulk materials, the free fall height should be less than 1m (from the top of the car box).
