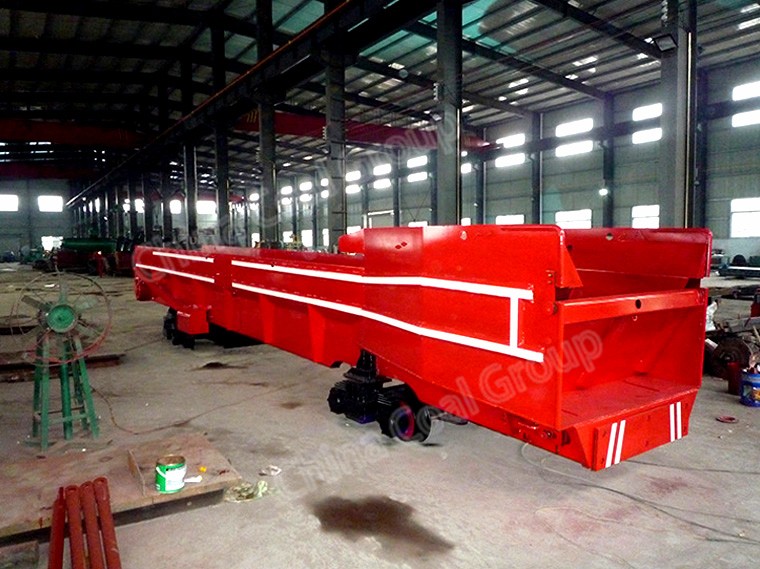

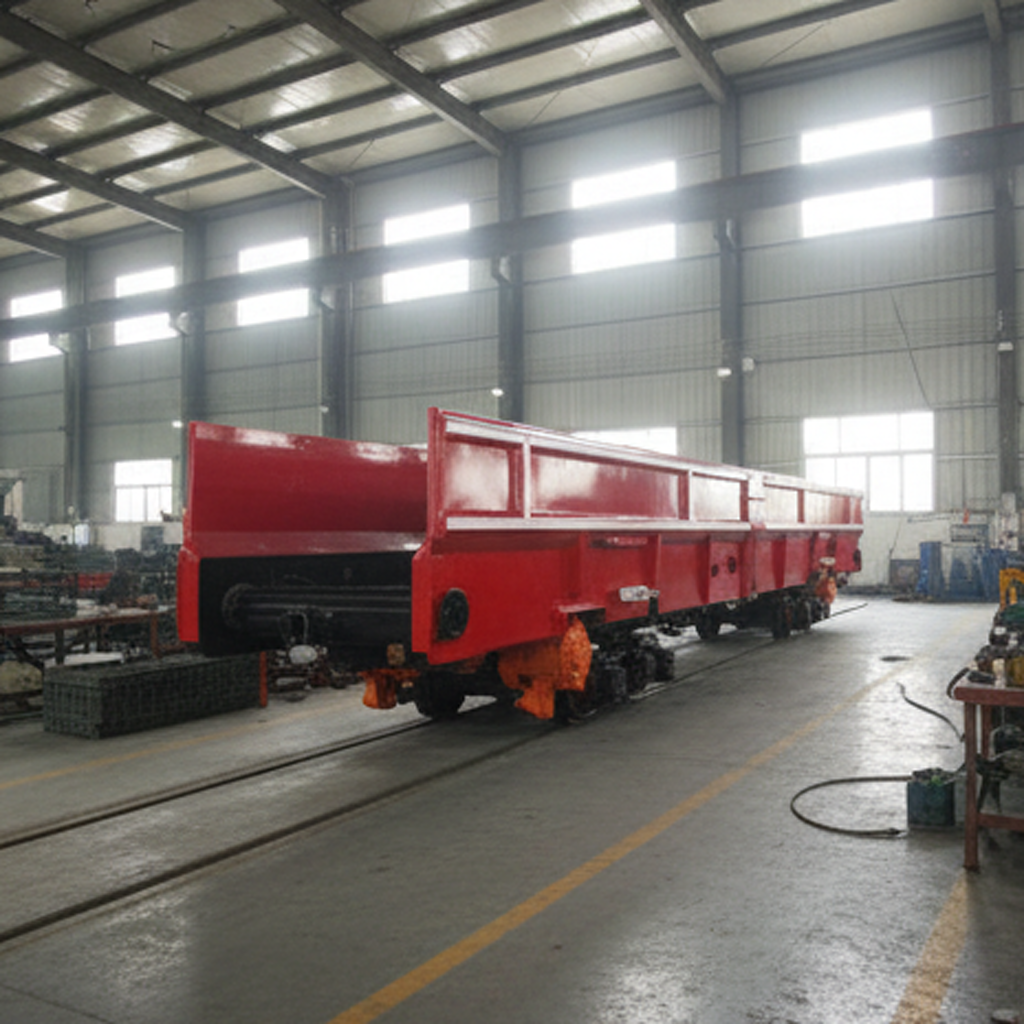

ST series shuttle mine car is a kind of mining and loading transportation equipment used in tunnels, wells, mining, water diversion tunnels, diversion tunnels, oil pipelines, natural gas transmission
Contact Us Product Center
ST series shuttle mine car is a kind of mining and loading transportation equipment used in tunnels, wells, mining, water diversion tunnels, diversion tunnels, oil pipelines, natural gas transmission pipeline tunneling and mining construction. Improve storage and transportation equipment. It is mainly composed of the trough-shaped car and the running part of the transport machine, and is driven by the traction motor vehicle on the track. The car body is arranged on two bogies. The scraper or chain conveyor is installed on the floor of the car. It is driven by wind or electric power. It is also used for wind and electricity. It is generally driven by electric drive.
MAIN PARAMETER OF|
Item |
Model |
||||||||
|
ST4 |
ST6 |
ST8 |
ST12 |
ST14 |
ST16A |
ST20A |
ST25A |
||
|
Capcty(m³) |
4 |
6 |
8 |
12 |
14 |
16 |
20 |
25 |
|
|
Loading Weight（t） |
10 |
15 |
20 |
25 |
29 |
32 |
40 |
50 |
|
|
Weight（t） |
6.5 |
8.5 |
10.2 |
12 |
13.6 |
17.2 |
19.84 |
24.6 |
|
|
Rail gaugemm） |
600/762 |
600/762/900 |
|||||||
|
Loading height（mm） |
1200 |
1445 |
1680 |
1445 |
1680 |
||||
|
Unloding time（min） |
1 |
1.2 |
1.5 |
1.5 |
2 |
2.8 |
4 |
4 |
|
|
Min Turning radius （m） |
12 |
15 |
15 |
15 |
15 |
18 |
15 |
25 |
|
|
Max walk speed（km/h） |
15 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
|
motor model |
YB︱11-8 |
YB︱13-8 |
YB︱18.5-8 |
YBK2-200L-6 |
|||||
|
power（KW） |
11 |
13 |
13 |
18.5 |
18.5 |
18.5×2 |
22×2 |
22×2 |
|
|
wheelbase（mm） |
800 |
1000 |
|||||||
|
Bogie center distance（mm） |
3000 |
3600 |
5400 |
5400 |
5450 |
6350 |
6250 |
7080 |
|
|
Drive form |
single |
double |
|||||||
|
Dimension（mm） |
length |
6250 |
7065 |
9540 |
9540 |
11255 |
12840 |
12900 |
14300 |
|
width |
1280 |
1505 |
1570 |
1570 |
1770 |
1670 |
1770 |
1850 |
|
|
height |
1620 |
1640 |
1640 |
1640 |
2000 |
2140 |
2000 |
2500 |
|
|
Applicable rail（kg/m） |
≥12 |
≥18 |
≥24 |
≥25 |
≥26 |
≥27 |
≥28 |
≥36 |
|
|
Applicable roadway section （m） |
2.2×2.2 |
2.5×2.5 |
3×3 |
3×3 |
3.4×3.4 |
3.5×4 |
3.4×3.4 |
4×4.5 |
|
