The large shuttle mine car, the rail wheel shuttle type, is mainly used for railway tunnels, hydraulic culverts and underground mines. The mechanized construction work of large and medium-sized engine
Contact Us Product Center

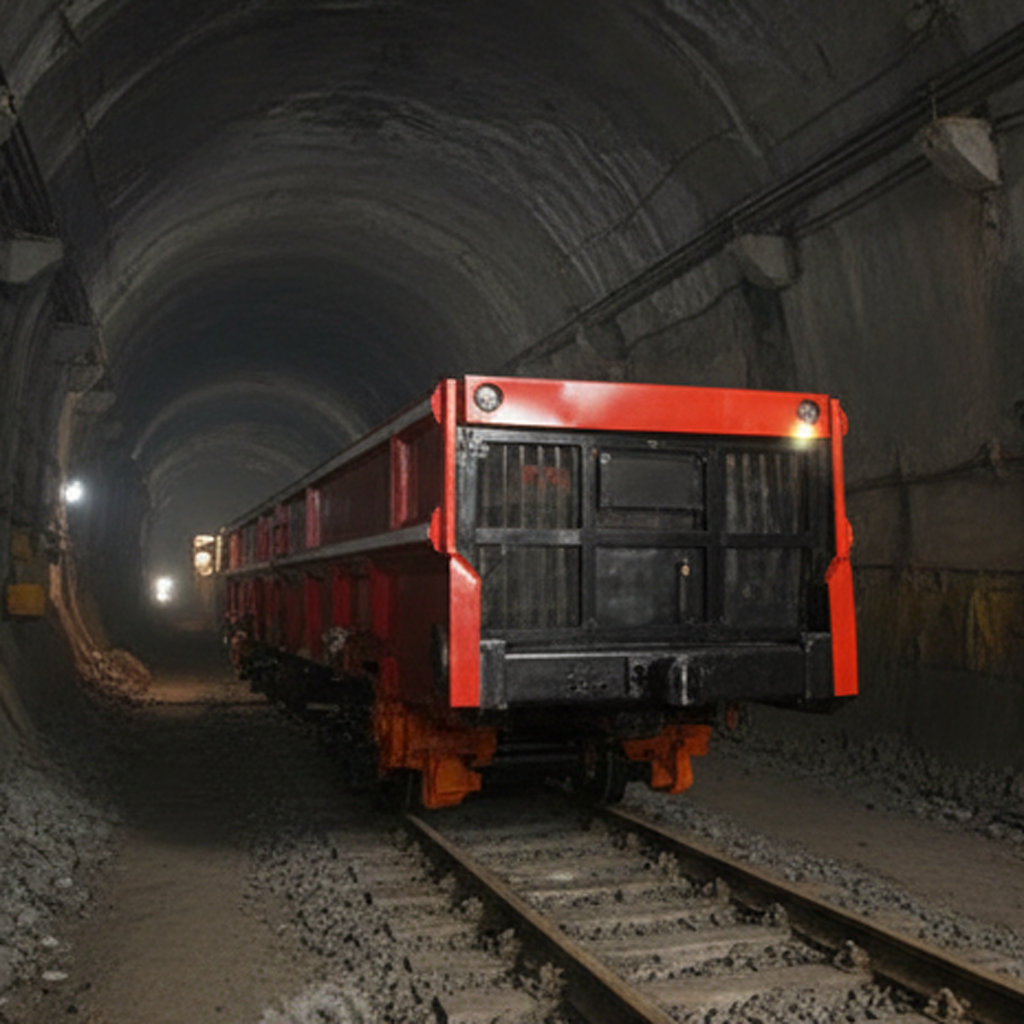

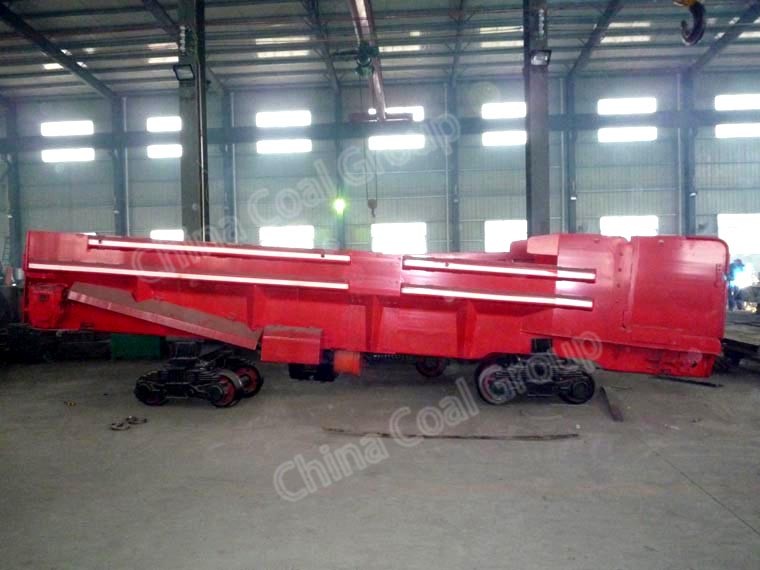

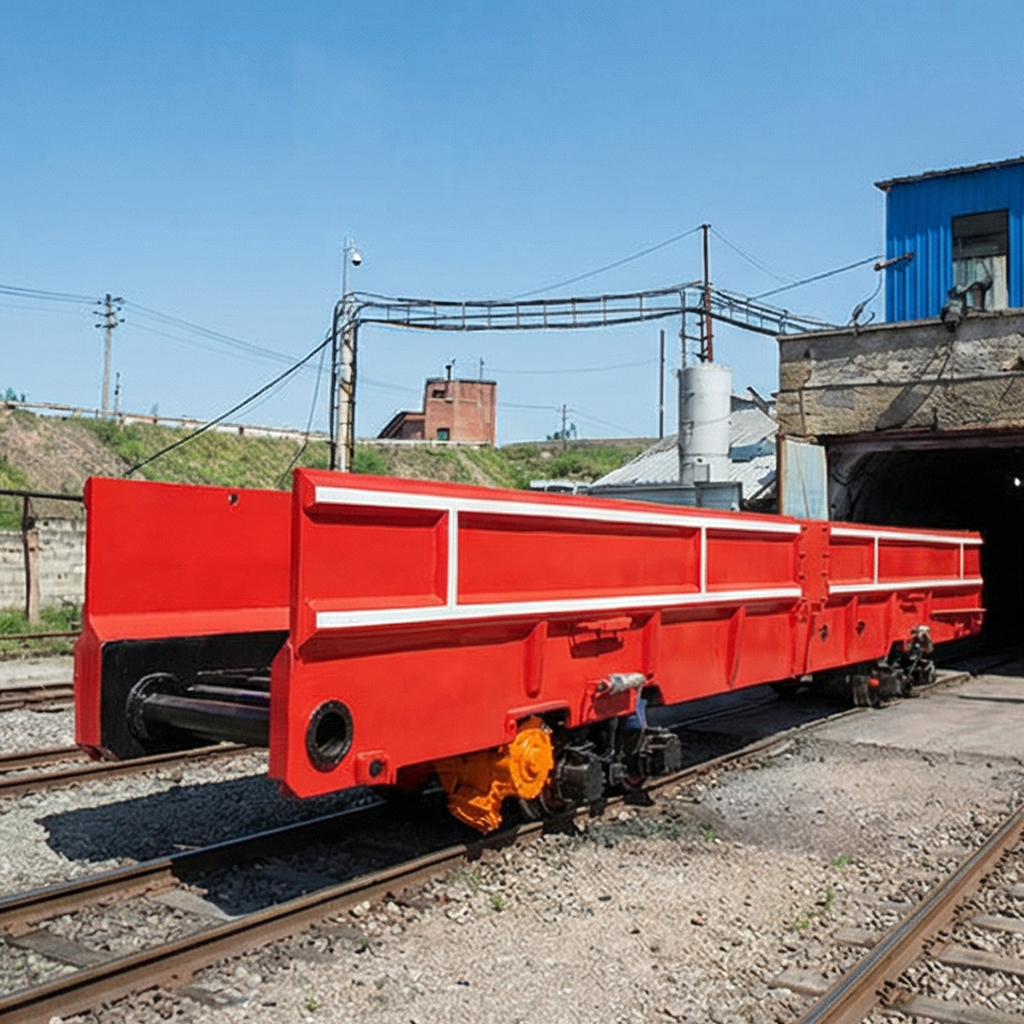

The large shuttle mine car, the rail wheel shuttle type, is mainly used for railway tunnels, hydraulic culverts and underground mines. The mechanized construction work of large and medium-sized engineering sections such as diverticulum is an efficient transportation equipment for transportation. It is mainly used in conjunction with electric motor vehicles and bucket loaders. It is composed of a tunnel smokeless tunneling system with high degree of mechanization and large installation capacity. It has the characteristics of environmental protection, high efficiency, easy operation and low labor intensity.
Structure and performance characteristics of large shuttle car
A scraper conveyor is installed in the car to automatically load and unload the meteorite. The scraper transporter is driven by NWG planetary gear reducer and sleeve roller chain. The planetary gear transmission has the advantages of small size, light weight, large carrying capacity, high efficiency and stable operation.
Among them, the ST14 large shuttle mine car adopts one transmission device, and the rest are driven by two sets of transmission devices at the same time.
The steering paddle adopts the form of leaf spring structure, which has good shock absorption performance, stable operation and is not easy to drop.
This series of shuttle-type mine car SD40 type can not only be used by bicycle, but also can be used in combination. After lap joint use, it can greatly improve the transportation efficiency. The car body can be divided into two parts for easy removal and handling.
MAIN PARAMETER OF|
Shuttle Mine Car Parameter |
||||||||
|
Item |
unit |
St-8/6b |
Sd-8/6b |
St-8/7b |
Sd-8/7b |
St-8/9b |
Sd-8/9b |
|
|
Volume |
M³ |
8 |
8 |
8 |
8 |
8 |
8 |
|
|
weight |
t |
10.4 |
10.1 |
10.11 |
10.17 |
10.16 |
10.23 |
|
|
Loding weight |
t |
≤20 |
≤20 |
≤20 |
≤20 |
≤20 |
≤20 |
|
|
Rail gauge |
length |
m |
|
9.54 |
9.54 |
9.54 |
9.54 |
9.54 |
|
width |
1.56 |
1.56 |
1.56 |
1.56 |
1.56 |
1.56 |
||
|
height |
1.64 |
1.78 |
1.64 |
1.78 |
1.64 |
1.78 |
||
|
Unloading time |
min |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
|
Maximum speed
|
Km/h |
15 |
15 |
15 |
15 |
15 |
15 |
|
|
Maximum motor power
|
kw |
13 |
13 |
13 |
13 |
13 |
13 |
|
