SD series lap type shuttle car is a high-efficiency shovel transportation and automatic unloading equipment. It can be used in stand-alone operation and can be used in combination. It has the characte
Contact Us Product Center

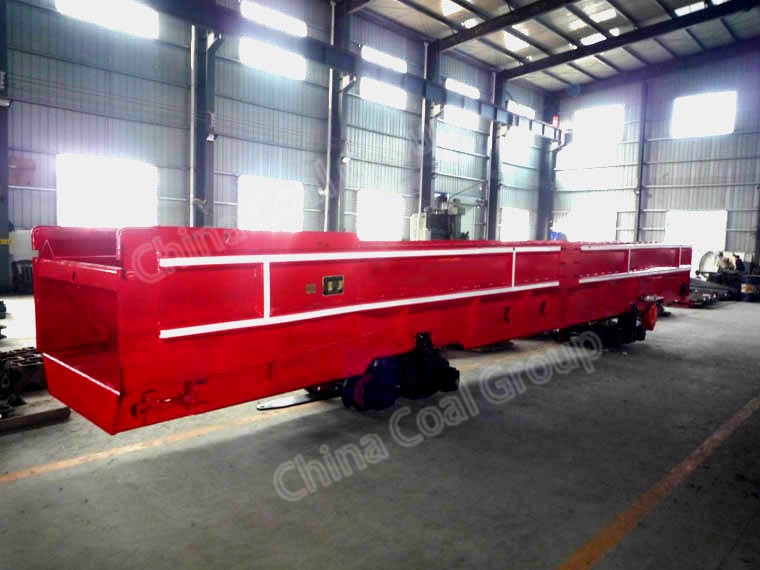

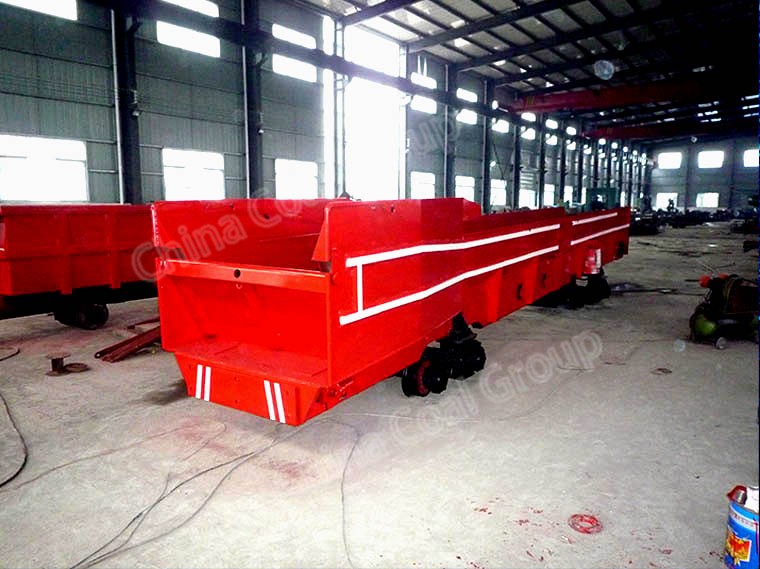

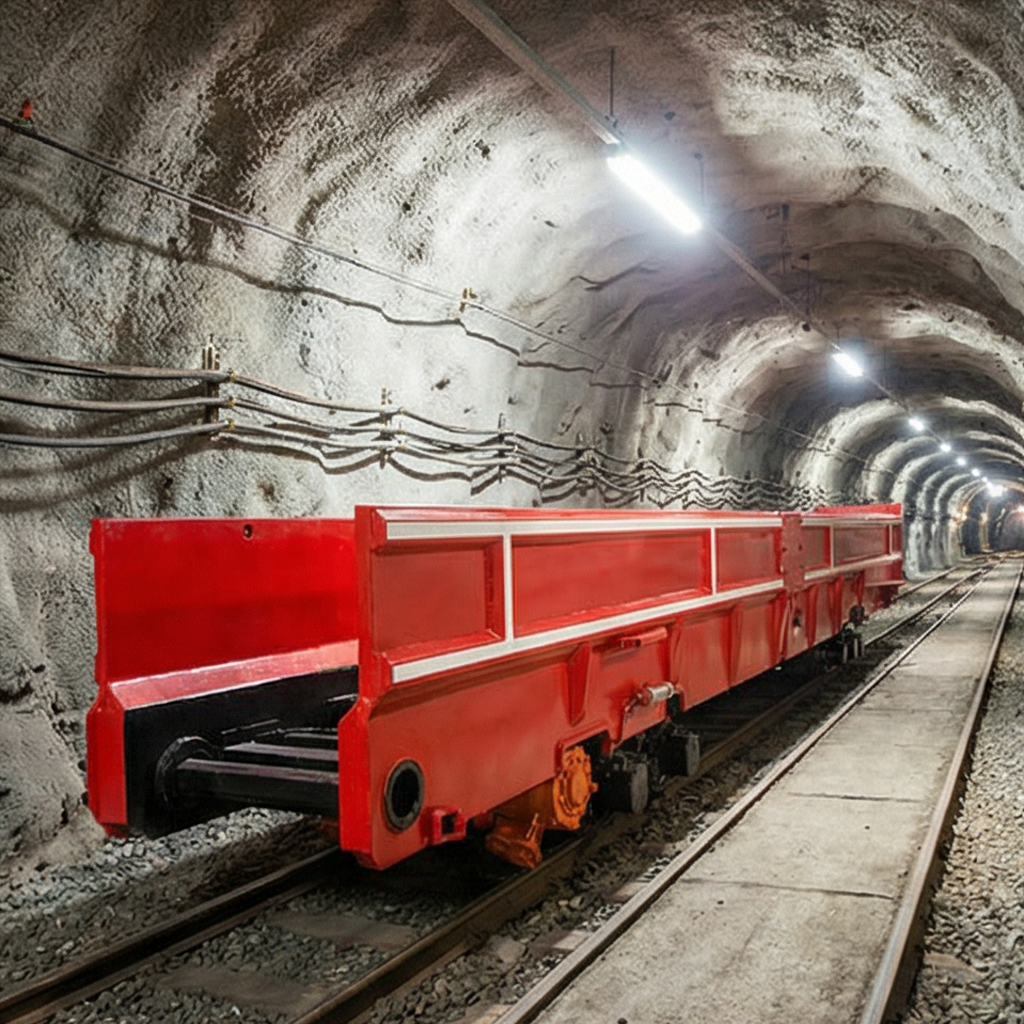

SD series lap type shuttle car is a high-efficiency shovel transportation and automatic unloading equipment. It can be used in stand-alone operation and can be used in combination. It has the characteristics of reasonable structure, strong shock absorption and stable operation. It is suitable for railway. Construction sites such as road tunnels, hydraulic culverts, and mine shafts are used in conjunction with traction motor vehicles to provide better transportation efficiency.
The SD series lap type shuttle car truck is equipped with a scraper transporter, which can automatically load and unload meteorites, with fast loading and unloading speed and high efficiency. The bogie is made of a leaf spring structure, which has good shock absorption performance, stable operation and is not easy to drop. The SD series lap shuttle has a special design, and the discharge end of the shuttle car's front car can extend into the loading end of the rear car, thereby achieving the lap joint when the shuttle car is in use. That is, it can be used by bicycles and can be used in groups. The lap-type shuttle can be used for both reloading and lapping. The shuttle is pulled by the locomotive to the unloading field for automatic end unloading and side unloading. However, the latter requires paving the road and double rails at the unloading point, and the car body can be rotated around the bogie at a certain angle to realize the side unloading. The car body is divided into two parts, front and rear, which can be removed and transported. Designed with explosion-proof devices for users to choose.
MAIN PARAMETER OF|
Item |
Model |
|||||||||
|
SD-6B |
SD-8B |
SD-12B |
SD-14B |
SD-16B |
SD-20B |
SD-25B |
SD-30B |
SD-35B |
||
|
Voltage(m³) |
6 |
8 |
12 |
14 |
16 |
20 |
25 |
30 |
35 |
|
|
weight(t) |
8.5 |
10.2 |
12 |
13.6 |
17.8 |
19.84 |
22.6 |
28.3 |
35.5 |
|
|
Loading weight(t) |
15 |
18 |
25 |
28 |
32 |
40 |
50 |
68 |
75 |
|
|
Rail gauge(mm) |
600/762/900 |
|||||||||
|
Dimension(mm) |
Length |
7065 |
9540 |
9540 |
11255 |
12840 |
12900 |
14300 |
17800 |
19800 |
|
width |
1550 |
1630 |
1630 |
1770 |
1670 |
1770 |
2050 |
2050 |
2050 |
|
|
height |
1640 |
2010 |
2010 |
2560 |
2680 |
2560 |
2700 |
2785 |
2985 |
|
|
Min turning radius(m) |
15 |
15 |
15 |
22 |
15 |
22 |
15 |
30 |
35 |
|
|
Loading height(m) |
1.2 |
1.45 |
1.45 |
1.4 |
1.52 |
1.4 |
1.7 |
1.7 |
1.8 |
|
|
Loading time (min) |
1.2 |
1.5 |
2 |
2 |
4 |
4 |
4 |
4.5 |
5 |
|
|
Max operating speed (km/h) |
15 |
|||||||||
|
Max motor power(kw) |
13 |
13 |
18.5 |
18.5 |
18.5×2 |
22×2 |
22×2 |
30×2 |
30×2 |
|
|
Bogie center distance(mm) |
3600 |
5400 |
5400 |
5450 |
6250 |
6250 |
7080 |
7250 |
7600 |
|
