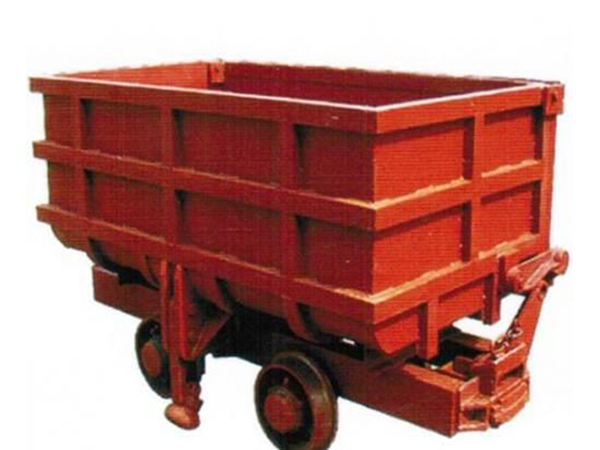

Curved Side Dumping Mine Car is a simple and practical operation equipment for the working face of the mine. It is mainly suitable for engineering excavation, construction and supporting of metallurgy, mines, coal mines, railways, highway tunnels, hydraulic culverts, underground mine flat roadways and military culverts. Simple, high-efficiency, high-speed slag delivery equipment.
The advantage of the curved Side Dumping Mine Car is that it has a larger volume than the dump truck and fixed mine truck, and it automatically and smoothly unloads. Due to the characteristics of this unloading method, the unloading space of the curved track is small, generally only 5.2 meters long. The inclination angle can still reach 55 degrees, which effectively saves the development space of the tunnel and reduces the size of the chamber. The unloading distance is short, and the digging volume of the coal bunker and the depot is only one-third of that of other mine cars. Since the unloading curve is symmetrical, the two-way unloading of the side dump mine cars can be realized.
Working principle of curved Side Dumping Mine Car:
The Side Dumping Mine Car is suitable for loading mineral rocks and sand with a block size of more than 500mm. When loading bulk materials, the free fall height should be less than 1m (from the top of the car box). The traction locomotive or hoist can be unloaded on a curved track unloading platform that has been prepared at the unloading place, and can be unloaded to the set side. One side of the carriage is connected with the frame by a shaft, and the other side is equipped with unloading rollers on the door. During unloading, when the roller wheel goes up the slope of the unloading curved track along the slope of the curved track, the carriage tilts, and the movable side door rotates around the pin shaft and is opened to start unloading. When the rollers run down the slope of the unloading curved track, the carriage automatically descends and resets to close the side door by its own weight. It should be noted that when the single-sided curved track unloading mine car is lifted from the bottom of the well to the unloading platform, the lifting hoist should slow down the speed to unload the platform to make it unload smoothly.
This is the working principle of the curved Side Dumping Mine Car.
