Fixed mine car, Xiaobian believes that everyone will be familiar with this product. Xiaobian has posted many articles about this product before. Those who are not sure can read the previous articles. Today, the editor is going to introduce the structure of the stationary minecart. Although everyone is familiar with this product, you can only know a part of the structure of this product. Now I will introduce it to you in detail. The composition of the fixed mining cart, I hope you can like it.
The fixed mine car is used for the transportation of large tunnels in coal mines, medium and small inclined shafts, small inclined shafts along the trough and mine ground transportation.
The coal mining car is composed of carriage, MG1.1-6A mine cart-frame, wheelset and buffer. If the fixed minecart needs a coupler or a cart baffle, please specify it when ordering.
Narrow-gauge railway transport vehicles for transporting bulk materials such as coal, ore and waste rock in mines generally need to be pulled by locomotives or winches.
Fixed mine car is a main transportation equipment for coal and gangue transportation on the ground and underground tunnels of coal mines. At the same time, it is also a short-distance transportation equipment for other non-metallic ores, bridge construction, railway engineering, transportation engineering and other construction transportation projects such as elm sand, gravel and other materials. The fixed series mining cart has the characteristics of simple structure, strong and durable, the resistance is small, the bearing capacity is large, and the maintenance is convenient.
Stationary coal mining car are mainly used to transport coal, gangue, materials, etc. above and below coal mines. It can also be used to transport materials in other mines or underground projects. It is generally composed of a car box, a frame, an axle, a buffer and a connector. The main products are: 0.5t, 1t, 2t, 3t. According to different structures and unloading methods, mine cars can be divided into fixed tipping bucket type, side unloading type, shuttle type and bottom unloading type.

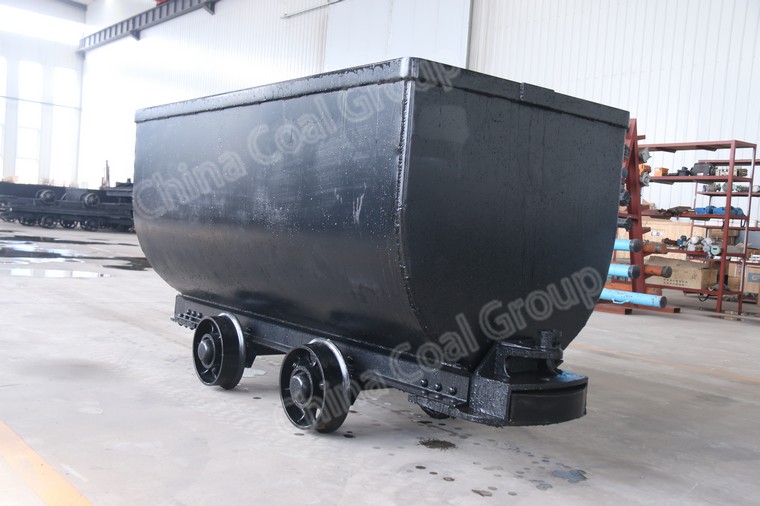

The fixed coal mining car box is fixedly connected to the frame, and the mine cart must be turned over and unloaded with a dumper. Its basic components are a car box, a frame, a buffer, a coupling and a running mechanism. The frame is a metal structure, which can withstand traction force, braking force, collision force between mine cars and impact force of steel rails. Buffers are installed at both ends of the frame to moderate the impact force between the two cars. The coupling is the part that connects the locomotive and the mine car. Commonly used are the latch chain ring and the slewing chain. The large mine car adopts an automatic coupler that also functions as a buffer. The running gear is two wheelsets consisting of 4 wheels and 2 axles. When the total of the mine car and material exceeds 20 tons, the number of wheel sets should generally be increased. For a mine car with more than two wheelsets, in order to make it easier to pass through a curve, the two wheelsets can be combined into a car with a turntable, which is called a bogie.
