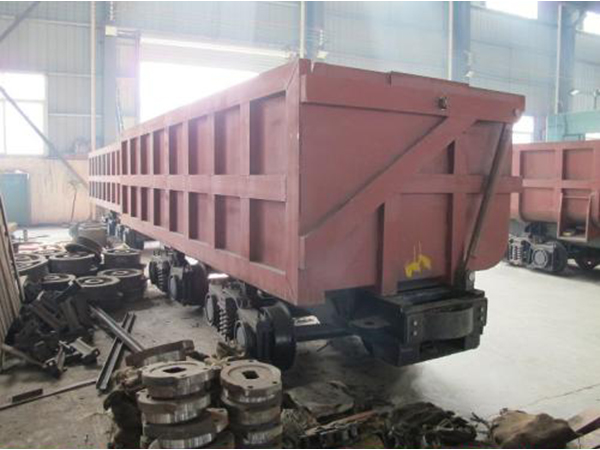

Side Dumping Mine Car are suitable for metal mines mined underground or on the ground, and transport ores or other objects along underground roadways and ground work sites. Compared with other bottom dump trucks, it has a smooth operation and low impact on electric locomotives and tractors. Therefore, it can extend its service life. The car is sturdy and durable, easy to maintain, can be unloaded in both directions, and the unloading speed is high.
Side Dumping Mine Car structure composition
The side dump type mine car is composed of the following components: 1. Car box, 2. Car underframe, 3. Wheel axle, 4. Unloading wheel, 5. Support spring 6. Buffer rubber spring and bumper. Among them, the connection between the car box and the car chassis is in the form of a hinge, so that the mine car can open a certain angle when passing the unloading station so that the ore can be unloaded smoothly.
1. The front and rear plates and side plates of the car box are welded with 12mm thick 16Mn plates, and grooved steel plates are used to reinforce the outer sides of the car box; the wing plates are welded to the left and right side plates respectively, and the top is welded with angle steel Slotted shape, and the angle steel is connected to the grooved steel plate so that the car box will not be damaged under the extremely harsh working environment.
2. Undercarriage. The bottom plate is made of 25mm thick steel plate, and the angle steel and steel plate are welded under the bottom plate, so that the bottom plate can withstand the impact force of the ore on the bottom plate during loading.
3. Wheel axle. The axle is composed of axles, wheels and rubber spring seats.
4. Unloading wheel. It is used when the mine car unloads the mine. When the mine car passes the unloading station, the unloading wheel starts to work. It rolls along the curved track to open the floor of the mine car. After the ore is unloaded, the floor is closed and the machine returns to the loading state.
5. Buffer rubber spring and bumper. The buffer and the bumper are installed at both ends of the mine car, mainly composed of a buffer rubber spring, bumper, latch and single ring chain. It can ease the impact between mine cars and reduce the impact force, extending the life of the vehicle.
6. Support spring. This minecart uses rubber springs as a vibration damping device to increase the inclination of the rubber springs during installation so that they can withstand greater impact loads.
Side Dumping Mine Car is a kind of self-unloading operation equipment, which is incapable of itself and needs to be used in conjunction with traction locomotives. One or both sides of the car box can be opened, the mine car is tilted with the aid of the ore unloading curved track installed on the ore unloading point, and the side door is opened by the lever to unload the ore.
