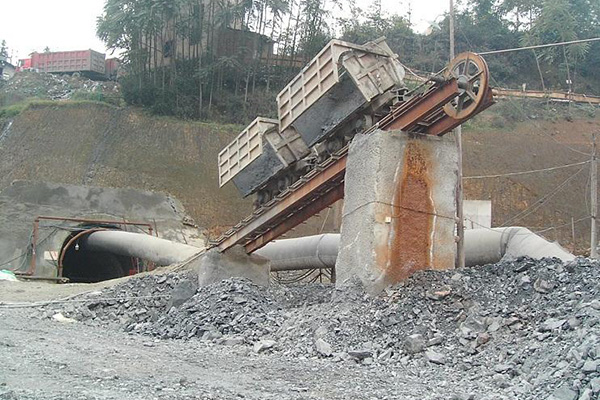

There are many operating equipment in the Side Dumping Mine Car. The advantage of the single-side curved track Side Dumping Mine Car is that it has a larger volume than the dump type mine car and fixed mine car, and it is automatically and smoothly unloaded. Small, generally only 5.2 meters long, the unloading inclination angle can still reach 55 degrees, effectively saving the development space of the well and reducing the size of the chamber. The unloading distance is short, and the digging volume of coal bunkers and depots is only one-third of that of other mine cars. Since the unloading curve is symmetrical, the two-way unloading of Side Dumping Mine Car can be realized.
Technical requirements for Side Dumping Mine Car
(1) The parts of the Side Dumping Mine Car of the same model should be interchangeable; the replacement of wearing parts should be convenient, the location of the lubrication point should be reasonable, the adjustment device should be flexible and under normal use conditions, the life of the mine car body should meet the following requirements such as ： Mine car volume m3: 4.0; Thickness of cart plate: 6; Car weight kg: 323; Service life h 3000;
(2) Welded structural parts are welded with carbon dioxide protection welding, and the quality should be in accordance with the provisions of JB / T5000.3-1998; the bumper of the mine car adopts metal bullet or high-strength rubber bullet; the mine wheel corresponds to the elastic shaft frame; The connection between the wheel component and the carriage should be firm and reliable, and the outline of the tipping wheel component should not exceed the overall size of the Side Dumping Mine Car when it is not tipped;
(3) The relevant technical requirements of the carriage, frame, and door shall comply with the following table:
Technical requirements volume m3; flatness of the door and Side Dumping Mine Car discharge port ≤ 4.0㎜; gap between the door and car discharge port ≤ 4.0㎜; diagonal difference between the door, car port and car discharge port ≤ 8.0㎜; frame , The coaxiality of each group of pin holes on the door and the car (2.0 mm); the common axis of each group of pin holes on the frame, door, and car is parallel to the respective longitudinal parallelism (2.0); the compression performance test of the shock absorber is based on GB / T1239.4 Regulations.
