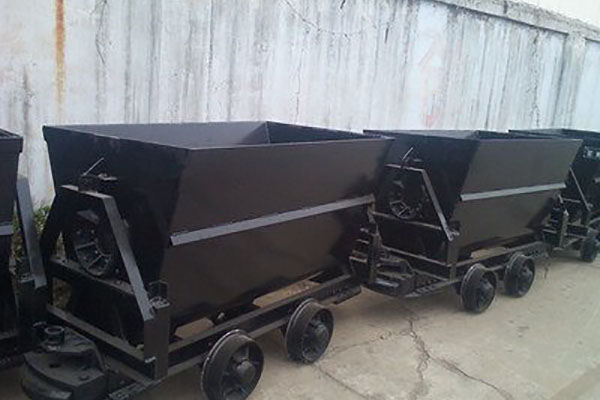

Dump type mining truck is a transportation equipment often used in mines. It has a simple structure and convenient operation. It can transport block materials such as ore, coal, and stones on the mine or construction site. It is composed of a carriage, a frame, a buffer bumper, and an axle. The feature is simple structure, sturdy and durable, easy to use, as long as the stopper can be opened manually, the material can be easily unloaded.
Precautions for installation and commissioning of Side Dumping Mine Car:
Before installing the minecart, first check the installation position of the minecart, check the track laying, and check whether the parallelism and flatness of the two rails meet the requirements, and adjust if necessary.
The top of the straight track should be at the same level, and the allowable error in the length direction should not exceed 1mm per meter and 3mm per 10m.
The permissible error on the corresponding measuring points in the left and right directions does not exceed 2mm.
During installation
After carefully checking that there are no problems, according to the installation requirements, ensure that the centerline of the wheelset of the minecart coincides with the centerline of the track.
During trial operation
During the trial operation, observe whether the pair of mine wheels and the track are in conflict with each other, and timely deal with them to prevent damage to the mine cart.
During the trial operation, observe the car sliding along the slope and colliding with another car, and observe whether the car body is inclined, out of track, or overturned.
During the trial operation, observe whether the minecart moves on the track with the smallest radius of curvature, and whether it collides with each other, interferes with the track or not.
