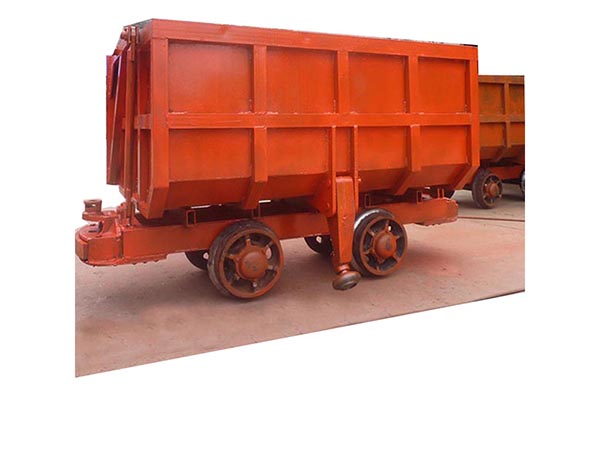

Side Dumping Mine Car is a mine transportation tool that replaces the ancient dump bucket truck. It combines its simplicity and convenience, increases its storage capacity, is light, not bulky, flexible, simple and flexible.
Side Dumping Mine Car is mainly suitable for tunneling and construction of tunnels and tunnels in metallurgy, mining roadways, coal mines, railways, highway tunnels, underwater culverts, diversion tunnels, diversion tunnels, culverts, etc. device. Side-loading type mining trucks are driven by tractors and winches, and can be combined with rock drills, claw rock loading machines, and ore sliding gate discharge systems to load materials. The ore block size does not exceed 600 mm. According to the load capacity of the mining truck After loading, it is guided to the special curved rail unloader by the traction power (the running speed does not exceed 1m / s). When the box is turned horizontally into a large discharge angle, the door is also opened to a large program. At this time, the unloading of the mine car is completed. When returning, the mine cart is automatically closed again through the curved door. The capacity of side dump mine car, curved rail side dump mine car, and side dump mine car have 2 cubic, 3 cubic, 4 cubic, 6 cubic, 8 cubic volumes.
The Side Dumping Mine Car consists of the following components: 1. car case, 2. car chassis, 3. wheel axle, 4. unloading wheel, 5. support spring, 6. buffer rubber spring and bumper. The connection between the carriage and the chassis is in the form of a hinge, so that the mine car can be opened at a certain angle when it passes through the unloading station so that the ore can be unloaded smoothly.
