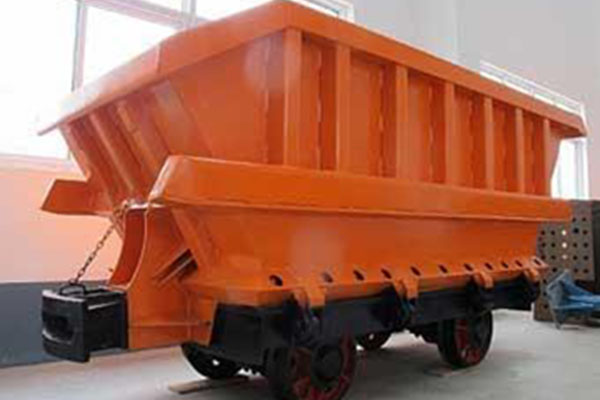

Components of side dumping mine car
1. The side dumping mine car front and rear plates and side plates of the car box are welded with 12mm thick 16Mn plates, and grooved steel plates are used to reinforce the outer sides of the car box; the wing plates are respectively welded to the left and right side plates, and the upper side is welded with angle steel The mouth shape, and the angle steel is connected with the grooved steel plate, so that the car box can not be damaged under the extremely harsh working environment.
2. Undercarriage. The side dumping mine car bottom plate is made of 25mm thick steel plate, and the angle steel and steel plate are welded under the bottom plate, so that the bottom plate can withstand the impact force of the ore on the bottom plate during loading.
3. Wheel axle. The side dumping mine car axle is composed of axles, wheels and rubber spring seats.
4. Unloading wheel. It is used when the mine car unloads the mine. When the mine car passes the unloading station, the unloading wheel starts to work. It rolls along the curved track to open the floor of the side dumping mine car. After the unloading of the ore, the floor is closed and the machine returns to the loading state.
5. Buffer rubber spring and bumper. The buffer and the bumper are installed at both ends of the mine car, mainly composed of a buffer rubber spring, a bumper, a latch and a single ring chain. It can ease the impact between mine cars and reduce the impact force, extending the life of the vehicle.
6. Support spring. This side dumping mine car uses rubber springs as a vibration damping device to increase the inclination of the rubber springs during installation so that they can withstand greater impact loads.
